Remove/install front door - AR72.10-P-0500N

MODEL 215

Fig 1: Identifying Front Door Remove/Install Components (1 Of 2)

Fig 2: Identifying Front Door Remove/Install Components (2 Of 2)

	Remove/Install
	Risk of injury. Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag unit with deployment face up, do not subject to temperatures above 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Danger when processing magnesium components		AS60.00-Z-0005-01N
	Recycling of magnesium components		OS60.00-P-0002-01N
1	Withdraw ignition key
2	Remove/install door liner on front door		AR72.10-P-1000N

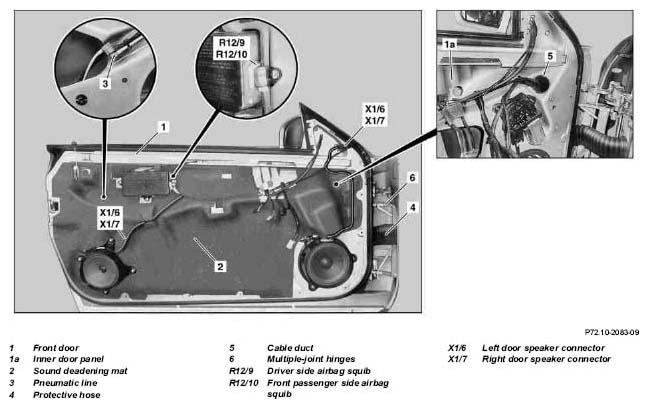

3	Remove sound deadening mat (2) above the CL line (3) and the electrical lines
4	Unplug the connector from driver/passenger side airbag squib (R12/9; R12/10)
5	Disconnect CL line (3)
6	Disconnect left; right (X1/6; X1/7) in-door speaker connector
7	Open CL line (3) and electrical line tie straps	Installation: Replace tie strap
8	Unclip protective tube (4) from front door (1)
9	Pull the CL line (3), together with the electrical lines from the front door (1) via the cable duct (5)

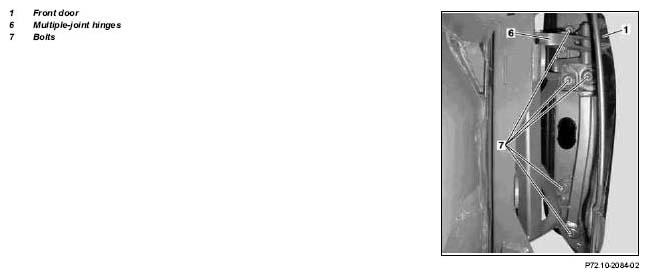

10	Unscrew bolts (7) from multi-joint hinge (6)	Secure the door with the assistance of a second person, avoid damaging the paint	*BA72.10-P-1001-01E
			Fig 4
11	Remove the front door (1) to the rear and lay down	Do not damage paintwork
	When replacing a door, carry out seam sealing and cavity preservation
12	Install in the reverse order	Following installation, check joint dimensions throughout	Figure
		Joint dimensions on hoods, doors and covers	*BE60.00-P-1002-01A
		If applicable, adjust front door	AR72.10-P-0550N

TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS

Number	Designation				Model 215
BE60.00-P-1002-01A	Gap dimension	Front door to A-pillar	Dimension "B"	mm	-
		Front door to fender	Dimension "H"	mm	4.5 (± 0.5)
		Front door to rear door	Dimension "I"	mm	-
		Front door to roof	Dimension "C"	mm	-
		Rear door to upper side section	Dimension "D"	mm	-
		Rear door to lower side section	Dimension "J"	mm	-
		Fender to A-pillar	Dimension "Q"	mm	-
		Front door to rear fender	Dimension "P"	mm	4.5 (± 0.5)
		Front door to rear fender	Fig., see		AR60.00-P-0700-01N

FRONT DOOR TIGHTENING TORQUE

Number	Designation		Model 215
BA72.10-P-1001-01E	Bolt, door hinge to A-pillar	Nm	32

Fig 3: Identifying Feeler Gage (129 589 03 21 00)

Fig 4: Identifying Torx Bit Set (000 589 01 10 00)
