Pressure supply valve unit, location/task/design - GF32.50-P-4210A: Notes
MODEL 215
MODEL 220 with CODE (487) Active body control (ABC)
MODEL 230 up to 28.2.06 with CODE (487) Active body control (ABC)

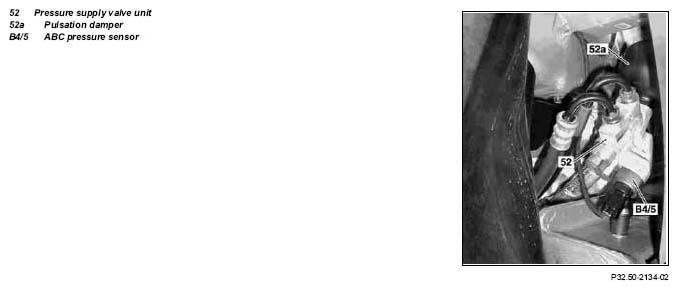

| Pressure supply valve unit, location | Models 215, 220 | GF32.50-P-4210-01S | |
| Model 230 | GF32.50-P-4210-01SL | ||
| Pressure supply valve unit, task | Limiting pressure by means of an integrated pressure limiting valve, monitoring pressure by means of the ABC pressure sensor (B4/5) and reducing hydraulic oscillations by means of the pulsation damper (52a). | ||
| Pressure supply valve unit, design | A pressure limiting valve is integrated in the valve unit (52)The pulsation damper (52a) and the ABC pressure sensor (4/5) are attached to the valve unit. |
