Removing and installing rear head restraint lowering pneumatic element - AR91.16-P-1790M

MODELS 220.0 /1

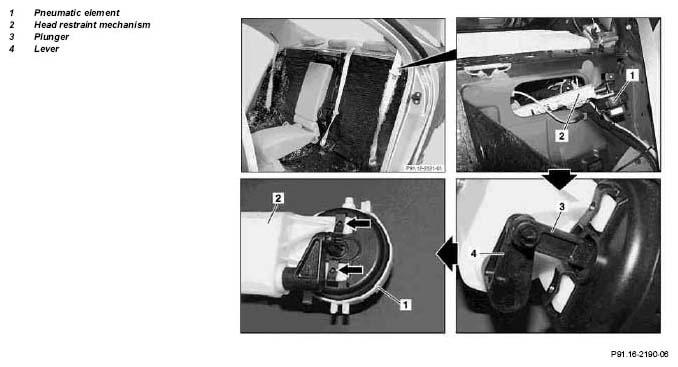

Fig 1: Identifying Rear Head Restraint Lowering Pneumatic Element Remove/Install Components - Models 220.0 /1

	Remove/Install
1	Removing rear head restraint mechanical system		AR91.16-P-1780M
2	Detach plunger (3) from lever (4)	Ensure that plunger (3) and lever (4) are not damaged.
3	Release retainer tabs (arrows) on pneumatic element (1) using suitable tool	Ensure that retainer tabs do not break off.
4	Pull pneumatic element (1) from head restraint mechanical system (2)
5	Install in the reverse order
6	Perform function test of pneumatic rear head restraint lowering mechanism
