Remove/install rear head restraint mechanical system - AR91.16-P-1780M

MODELS 220.0 /1

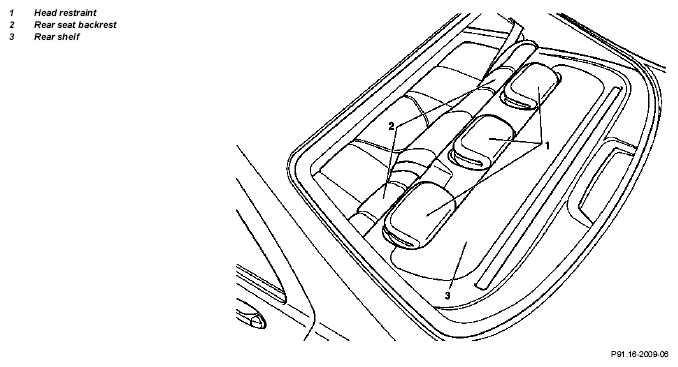

Fig 1: Identifying Rear Head Restraint Mechanical System Remove/Install Components - Models 220.0 /1 (1 Of 2)

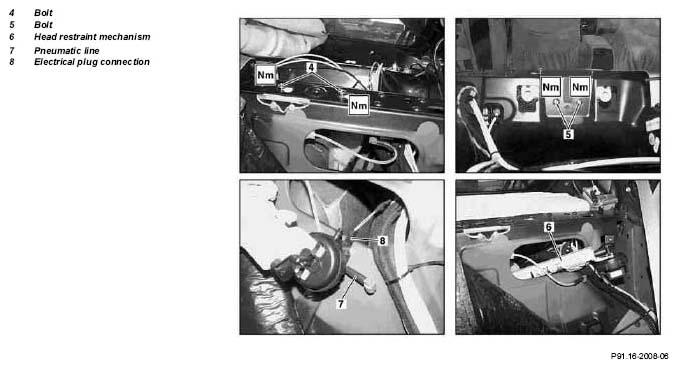

Fig 2: Identifying Rear Head Restraint Mechanical System Remove/Install Components - Models 220.0 /1 (2 Of 2)

	Remove/Install
1	Removing rear head restraint (1)		AR91.16-P-1770E
2	Remove rear seat backrest (2)	Without electrically adjustable rear bench seat, code 223b or individual rear seats, electrically adjustable, with seat ventilation, heated seats and memory package, code 224c.	AR91.12-P-1620MA
		With electrically adjustable rear bench seat, code 223b.	AR91.12-P-1620M
		With individual rear seats, electrically adjustable, with seat ventilation, seat heater and memory package, code 224c.	AR91.12-P-1620MB
3	Remove rear shelf (3)		AR68.30-P-4580M
4	Undo screws (4, 2 pcs.)	Screw, head restraint mechanical system to rear wall.	*BA91.16-P-1002-01A
5	Unscrew bolts (5, 2 pcs.)	Screw, head restraint mechanical system to rear wall.	*BA91.16-P-1002-01A
6	Remove head restraint mechanical system (6) from partition wall access cover towards front
7	Detach pneumatic line (7) and electrical connector (8)
8	Install in the reverse order
9	Check operation of rear fold-down head restraint (1)

HEAD RESTRAINTS

Number	Designation		Model 215	Model 220
BA91.16-P-1002-01A	Screw, head restraint mechanical system to rear wall.	Nm	4	4
