Remove and install headrest guide on front seat - AR91.16-P-0050M

MODELS 220.0 /1

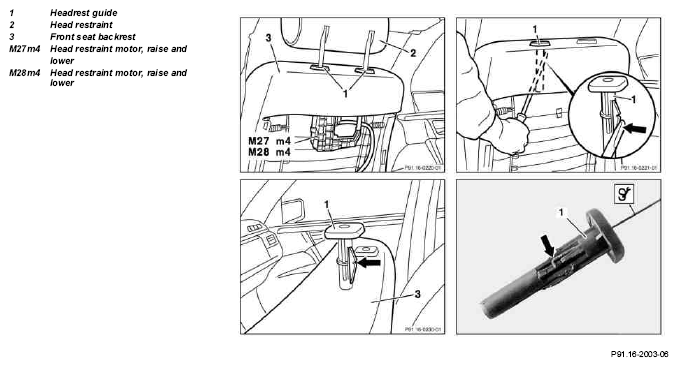

Fig 1: Identifying Headrest Guide On Front Seat Remove/Install Components - Models 220.0 /1

	Remove
1	Remove head restraint (2)
2	Remove tensioning element from front seat backrest		AR91.10-P-1910E
3	Remove head restraint raise/lower motor (M27m4/M28m4)	Push motor to right first and then remove downwards.
4.1	Release catch at head restraint guide (1) using screwdriver	Push back catch (arrow) at head restraint guide (1) using screwdriver and pull head restraint (1) out upwards.
4.2	Release catch at head restraint guide (1) using pulling hook	Pulling hook. Insert pulling hook into top of head restraint guide (1), push back catch and pull out head restraint upwards.	Fig 2
	Install
5	Insert head restraint guide (1) into backrest frame of front seat backrest (3)	Do not damage backrest upholstery. Catch (arrow) must point towards rear.
6	Engage head restraint guide (1) in backrest frame of front seat backrest (3)
7	Install head restraint raise/lower motor (M27m4/M28m4)	Insert motor facing upwards and then push to left until it engages in backrest frame.
8	Fit seat-back lining to front seat backrest (3)		AR91.10-P-1910E
9	Install head restraint (2)

Fig 2: Identifying Pulling Hooks (140 589 02 33 00)
