Remove/install front seat backrest seat-back lining - AR91.10-P-1910E
MODELS 202, 210, 220

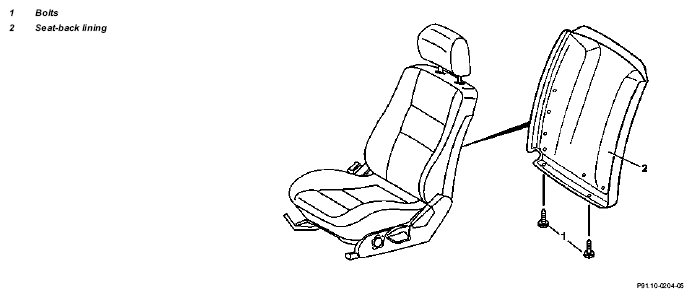

Fig 1: Identifying Front Seat Backrest Seat-Back Lining Remove/Install Components - Models 202, 210, 220
| Remove, Install | |||
| 1 | Slide the front seat forwards with the longitudinal adjustment mechanism | ||
| 2 | Slide backrest forwards with the inclination adjustment mechanism | ||
| 3 | Unscrew screws (1) | ||
| 4 | Pull seat-back lining (2) down and take off | ||
| 5 | Install in the reverse order |
