Remove, install injectors (ME-SFI) - AR07.03-P-6520L

ENGINE 137.970 in MODELS 215.378, 220.178 /878

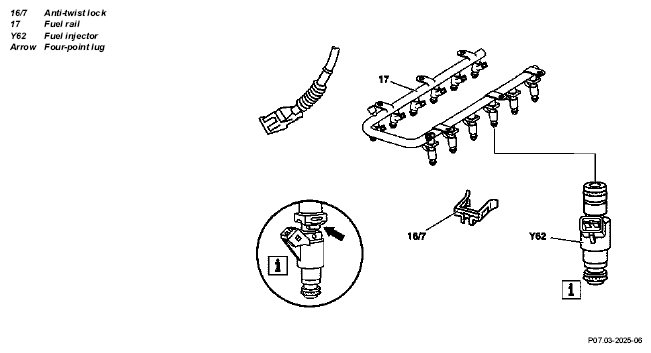

Fig 1: Identifying Injectors (ME-SFI)

Fig. item, etc.	Work instructions
	Remove air cleaner, install		AR09.10-P-1050L
17	Remove, install fuel rail (ME-SFI)	with injectors	AR07.03-P-1451L
16/7	Anti-twist lock	Must engage in four-point lug (arrow) at fuel injector (Y62)
	O-rings	Inspect for damage. If O-rings are faulty, replace injector. Oil O-rings before installing injectors.
