Remove/install |
|
|
| 1.1 |
Connect no load current retention unit |
Except model 211, 230 |
AR54.10-P-1030-07I |
 |
Risk of explosion
caused by oxyhydrogen gas. Risk of poisoning and caustic burns
caused by swallowing battery acid. Risk of injury
caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries |
No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A |
| 2 |
Detach ground line(s) at battery(ies) |
Model 211.0 |
AR54.10-P-0003T |
| |
|
Model 211.2 |
AR54.10-P-0003TA |
| |
|
Model 215, 220 |
AR54.10-P-0003I |
| |
|
Model 230 |
AR54.10-P-0003R |
| |
|
Turn key in electronic ignition switch EIS into position "0". Key cannot be withdrawn.
Vehicles with Keyless Go, code 889: Switch off engine, remove Keyless Go cards from the vehicle and store outside of transmitter range.
Installation:
After connecting, read out diagnostic trouble code memory, set time at instrument cluster, encode radio, normalize power windows and activate steering angle sensor. Vehicles with stationary heater: adjust time display on stationary heater. |
|
 |
Notes on battery |
|
AH54.10-P-0001-01A |
| 3 |

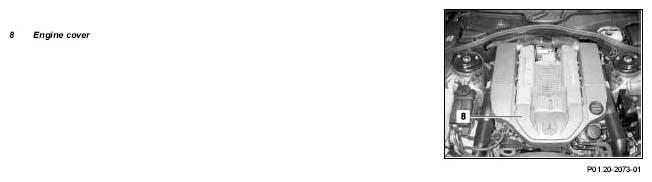

Unclip and remove engine cover (8) |
|
|
| 4 |
Slacken coolant expansion reservoir and place to the side |
Models 211, 230 |
|
| 5 |
Remove right air intake pipe |
|
|
| 6 |
Remove poly-V belt for supercharger |
Model 211.076 /276 /215.374, 220.074 /174, 230.472 /474 |
AR13.21-P-1202RVK |
| 7 |
Remove poly-V belt |
Model 215, 220, except 215.374, 220.074 /174 |
AR13.22-P-1202BA |
| |
|
Model 215.374, 220.074 /174, 230 |
AR13.22-P-1202R |
| |
|
Model 211 except 211.076 /276 |
AR13.22-P-1202PV |
| |
|
Model 211.076 / 276 |
AR13.22-P-1202RV |
| 8 |
Pinch off electrical connections of alternator (G2) |
|
|
| 9.1 |

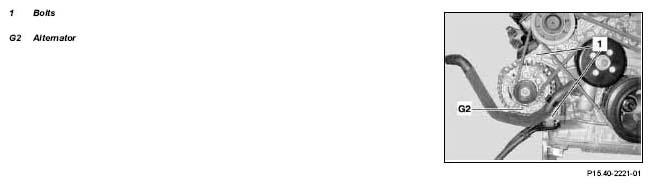

Unscrew bolts (1) and place alternator (G2) to the side |
Model 211, 230 |
|
| |
|
External Torx set |
Fig 4 |
| |
|
 |
*BA15.40-P-1005-01A |
| 9.2 |
Remove alternator (G2) |
Model 215, 220 with engine 112, 113 except 113.991 /992 |
AR15.40-P-5032I |
| |
|
Model 215, 220 with engine 113.991/ 992 |
AR15.40-P-5032AM |
| 10 |

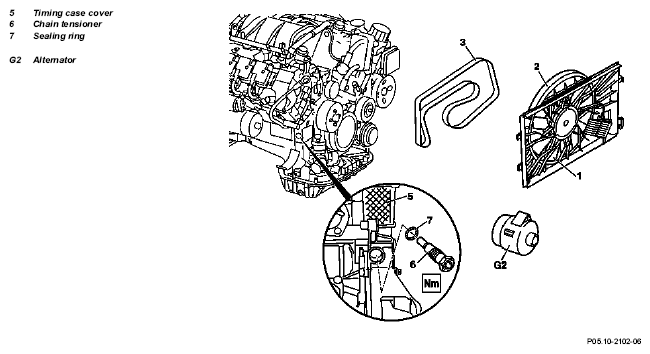

Take chain tensioner (6) off timing case cover (5) |
Installation:
Replace seal (7). |
|
| |
|
|
*BA05.10-P-1001-01C |
 |
Chain tensioner design |
Engine 112, 113 |
GF05.10-P-7801-01A |
| 11 |
Install in the reverse order |
|
|
| 12 |
Render electrical system operational |
Carry out basic programming (normalize windows and sliding roof, etc.). |
|
| |
|
Model 211 |
AR00.19-P-0200T |
| |
|
Model 215, 220 |
AR00.19-P-0200M |
| |
|
Model 230 |
AR00.19-P-0200R |
