Remove/install camshafts - AR05.20-P-6992MC

ENGINE 275 in MODEL 215, 216, 220, 221, 230

Shown on model 220

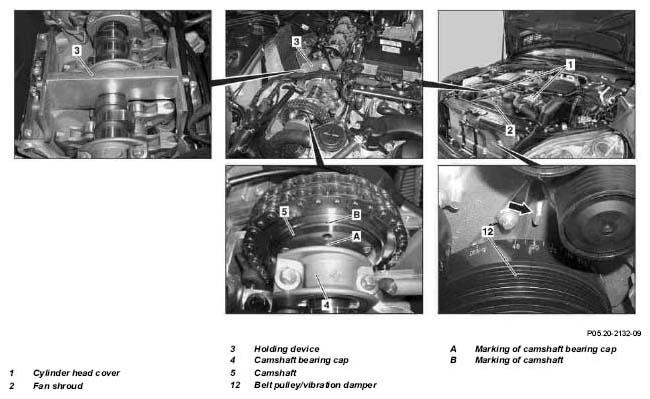

Fig 1: Identifying Camshafts Position - Shown On Model 220

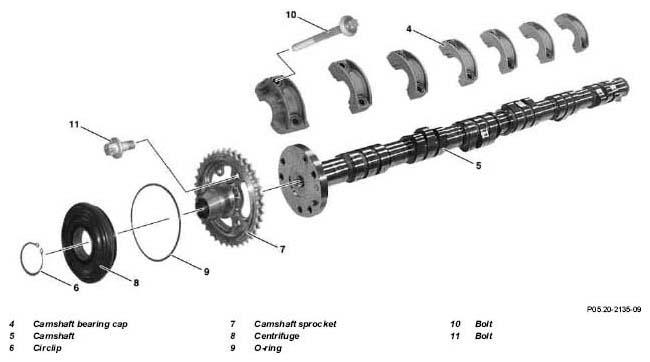

Fig 2: Exploded View Of Camshafts

	Removing
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Drain coolant from radiator		AR20.00-P-1142H
	Notes on coolant		AH20.00-N-2080-01A
2	Remove coolant thermostat housing		AR20.10-P-2710M
3	Remove air pump	Model 215, 220	AR14.30-P-7251L
		Model 216, 221	AR14.30-P-7251SZ
		Model 230	AR14.30-P-7251R
4	Remove fan shroud (2).	Model 215.376, 220.176, 230	AR20.40-P-6800AC
		Model 215.379, 220.179	AR20.40-P-6800IM
		Model 216, 221 except 216.379, 221.179	AR20.40-P-6800SZ
		Model 216.379, 221.179	AR20.40-P-6800SXM
5	Remove cylinder head covers (1)		AR01.20-P-5014H
6	Remove front cover at left cylinder head		AR01.30-P-5700ML
7	Remove front cover at the right cylinder head		AR01.30-P-5700MR
8	Position piston of cylinder a 1 to 30° crank angle after ignition TDC	Rotate engine at crankshaft in direction of engine rotation until marking for a 30° crank angle on the belt pulley/vibration damper (12) coincides with marking on the timing case cover (arrow). Marking (A) of camshaft bearing cap (4) must be aligned with marking (B) on camshaft (5). The engine must not be turned back, otherwise timing chain can skip and this can result in engine damage.
9	Remove chain tensioner	Model 215, 220	AR05.10-P-7800M
		Model 216, 221	AR05.10-P-7800SZ
		Model 230	AR05.10-P-7800R
10	Remove circlip (6) of left camshaft sprocket (7) and remove centrifuge (8)
11	Remove camshaft sprockets (7)	Marl camshaft sprocket and timing chain relative to each other. Turn camshafts (5) in such a way that holding devices (3) can be mounted free of tension on the cylinder heads.
		Retainer (left camshaft)	Figure
		Retainer (right camshaft)	Figure
12	Remove camshaft bearing caps (4)	Observe loosening instructions for camshaft bearing cap: ↓
		Loosening, tightening instructions for camshaft bearing cap	AH05.20-P-0300-01A
13	Remove camshafts (5)
	Install
14	Install camshafts (5)	Lubricate cams and bearing points.
15	Install camshaft bearing caps (4)	Observe camshaft bearing cap tightening instructions: ↓
		Loosening, tightening instructions for camshaft bearing cap	AH05.20-P-0300-01A
		Bolt (10) for camshaft bearing cap	*BA05.20-P-1002-02I
16	Adjust basic position of camshafts (5)		AR05.20-P-6020M
17	Install camshaft sprockets (7)	Camshaft sprocket bolt (11)	*BA05.20-P-1001-02I
		Retainer (left camshaft)	Figure
		Retainer (right camshaft)	Figure
18	Mount centrifuge (8) with circlip (6) on left camshaft sprocket (7)	Replace the O-ring (9).
19	Installing chain tensioner	Model 215, 220	AR05.10-P-7800M
		Model 216, 221	AR05.10-P-7800SZ
		Model 230	AR05.10-P-7800R
20	Check basic position of camshafts (5)		AR05.20-P-6010MC
21	Install front cover on right cylinder head		AR01.30-P-5700MR
22	Install front cover on left cylinder head		AR01.30-P-5700ML
23	Install cylinder head covers (1)		AR01.20-P-5014H
24	Install fan shroud (2)	Model 215.376, 220.176, 230	AR20.40-P-6800AC
		Model 215.379, 220.179	AR20.40-P-6800IM
		Model 216, 221 except 216.379, 221.179	AR20.40-P-6800SZ
		Model 216.379, 221.179	AR20.40-P-6800SXM
25	Install air pump	Model 215, 220	AR14.30-P-7251L
		Model 216, 221	AR14.30-P-7251SZ
		Model 230	AR14.30-P-7251R
26	Install coolant thermostat housing		AR20.10-P-2710M
27	Inspect cooling system for leaks	Model 215, 220, 230	AR20.00-P-1010HA
		Model 216, 221	AR20.00-P-1010SX

CAMSHAFT TORQUE SPECIFICATION

Fig 3: Identifying Holding Device (137 589 01 40 00)

Fig 4: Identifying Holding Device (285 589 00 40 00)
