Remove/install front cover on cylinder head - AR01.30-P-5700MR

ENGINE 275 in MODEL 215, 216, 220, 221, 230

Right cover

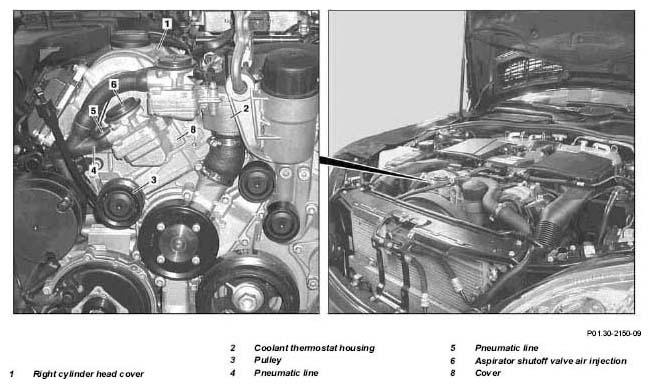

Fig 1: Identifying Right Cover On Cylinder Head Remove/Install Components - (Shown On Model 220.176)

Shown on model 220.176

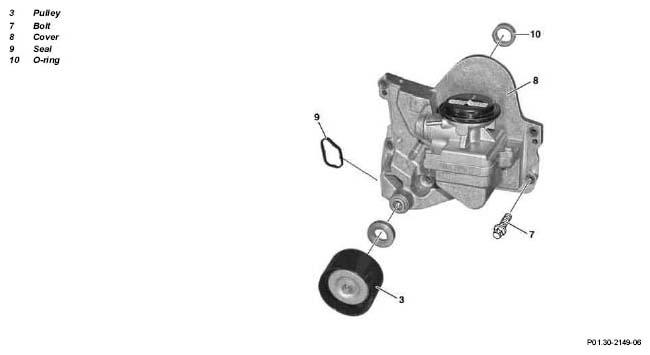

Fig 2: Identifying Pully, Cover Bolt And Seal

	Remove/install
1	Drain coolant from radiator		AR20.00-P-1142H
2	Remove right cylinder head cover (1)		AR01.20-P-5014H
3	Remove coolant thermostat housing (2)		AR20.10-P-2710M
4	Remove poly-V-belt	Model 215, 220, 230	AR13.22-P-1202L
		Model 216, 221	AR13.20-P-0001SZ
5	Remove guide pulley (3)		*BA01.30-P-1002-01G
6	Detach pneumatic lines (4, 5) from air injection (6) air shutoff valve	Check condition of the pneumatic lines (4, 5); replace if required.
7	Remove bolts (7) and remove right front cover (8)	Bolts (7, 7 pieces) Installation: Replace gasket (9) and O-ring (10). Note sealant path on front cover (8): ↓
		Application of sealant to front cover on cylinder head	AH01.30-P-1000-02C
			*BA01.30-P-1001-01G
			Figure
		Sealant	*BR00.45-Z-1013-01A
8	Install in the reverse order

CYLINDER HEAD

Number	Designation			Engine 275
BA01.30-P-1001-01G	Right front cover to cylinder head	M6	Nm	8
BA01.30-P-1002-01G	Bolt, guide pulley to front cover on right	M8	Nm	35

Fig 3: Identifying Squeeze Gun (112 589 00 25 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant	A 003 989 98 20
