Retrofitting automatic dimming mirrors - AN68.40-P-0001PB

MODEL 203 except CODE (275a) Memory package (driver's seat, steering column, mirrors)

MODEL 203 except CODE (500b) Folding left and right outside mirrors

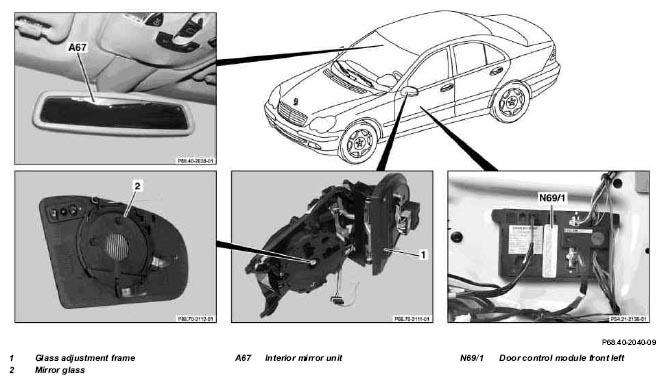

Fig 1: Retrofitting Automatic Dimming Mirrors

	Removal, installation
	Risk of explosion  from gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid batteries	No fire, sparks, naked flames or smoking. Wear acid-resistant gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery	All models.	AH54.10-P-0001-01A
1	Connect quiescent current retention unit
			AR54.10-P-1030-07I
			*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
			AR54.10-P-0003P
3	Remove left front door control module (N69/1)	Installation:  New part.
			AR72.10-P-1000P
4	Remove mirror glass (2)	Driver's side. Installation:  New part.
			AR88.70-P-9020P
5	Remove glass adjustment frame (1)	Driver's side. Refer to:↓
		Remove outside rearview mirror completely Installation:  Glass adjustment frame (1), new part.	AR88.70-P-9000P
6	Remove mirror adjustment wiring harness	Driver's side. Installation:  New part.
7	Remove inside rearview mirror (A67)	Installation:  New part.
			AR68.40-P-0001P
8	Install in the reverse order
9	Perform version coding for "Automatic dimming outside and inside rearview mirror (driver)"	STAR diagnosis tool
10	Carry out operational check
11	When modifying package code or designation for corresponding special equipment, enter on vehicle card and in FDOK	Code (249b) Automatic dimming outside and inside rearview mirror (driver)
