Remove/install complete outside mirror - AR88.70-P-9000P

MODEL 203

Shown on model 203.0

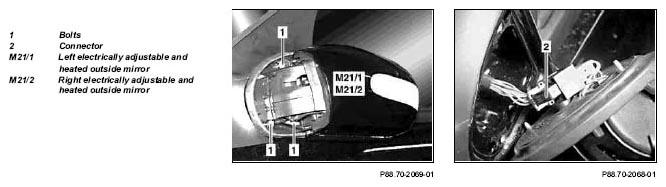

Fig 1: Identifying Complete Outside Mirror Remove/Install Components (1 Of 2)

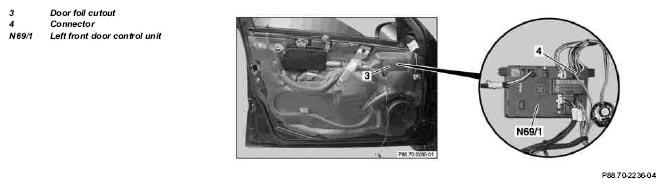

Fig 2: Identifying Complete Outside Mirror Remove/Install Components (2 Of 2)

MODIFICATION NOTES

28.10.02

The contacts of the outside mirror are located on the door control unit as of production period 01.03.02

Steps 2.1, 3.1, 4.1 included in document

	Remove/Install
1	Fold down outside mirror	Left electrically adjustable and heated outside mirror (M21/1), right (M21/2)
2.1	Remove door lining	In vehicles as of 01.03.02	AR72.10-P-1000P
2.2	Partially loosen door foil	In vehicles as of 01.03.02 Loosen only in area of door foil cutout (3) and line routing
3.1	Open connector (2) on left electrically adjustable and heated outside mirror (M21/1), right electrically adjustable and heated outside mirror (M21/2) and disconnect	On vehicles up to 01.03.02
3.2	Open connector (4) on left front door control unit (N69/1) and disconnect	In vehicles as of 01.03.02
4	Remove bolts (1)	Outside mirror on front door	*BA72.10-P-1011-01A
		Vehicles as of 01.12.04	Fig 3
5	Remove outside mirror	Left electrically adjustable and heated outside mirror (M21/1), right (M21/2)
6	Install in the reverse order

FRONT DOOR

Number	Designation		Model 203
BA72.10-P-1011-01A	Outside mirror on front door	Nm	2.5

Fig 3: Identifying Screwdriver Insert (904 589 02 10 00)
