Adjust left/right exterior mirror function - GF88.79-P-2001S
MODELS 215, 220
Adjust left/right exterior mirror (Shown on LHS vehicle)
Function requirements:
- no overvoltage/undervoltage
- Term.15R or 15 ON
Function

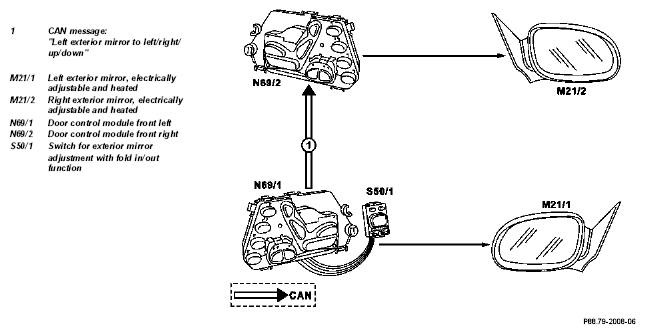

The left and right exterior mirrors can be electrically adjusted via the switches in the switch train for exterior mirror adjustment with fold in/out function (S50/1) in the front left door control module (N69/1) (RHS vehicle: Front right door control module (N69/2)) . The following settings are possible:
- Horizontal mirror glass adjustment
- Vertical mirror glass adjustment
- Mirror housing folding-in (garage position) and folding-out (driving position)
The adjustments are carried out by the motors in the left electrically adjustable and heated exterior mirror (M21/1) and the right electrically adjustable and heated exterior mirror (M21/2) . The motors are actuated via the front left door control module (N69/1) and the front right door control module (N69/2).
The memory function (special equipment) can be used to call up stored mirror settings.
Setting the parking position of the exterior mirror on the front passenger's side enables the driver to check the distance of the relevant rear wheel from the edge of the curb when reversing into a parking space.
Up to 31.05.01
the fold in exterior mirror switch (S50/1s4) or the fold out exterior mirror switch (S50/1s5) must be actuated until the mirror housings are in the desired position.
As of 01.06.01
the fold in exterior mirror switch (S50/1s4) or the fold out exterior mirror switch (S50/1s5) merely have to be touched, and the mirror housings are automatically moved to the desired position.
| Fold in left/right exterior mirror function | GF88.79-P-2002S | ||
| Memory switch function | 220.063 with code 275a only | GF91.29-P-0001S | |
| Store exterior mirror position function | 220.063 with code 275a only | GF88.79-P-2004S | |
| Call up stored exterior mirror positions function | 220.063 with code 275a only | GF88.79-P-2005S | |
| Front passenger's side exterior mirror parking position function | 220.063 with code 275a only | GF88.79-P-2006S | |
| Front left door control module position/task/structure/function | GF72.29-P-4105S | ||
| Front right door control module position/task/structure/function | GF72.29-P-4106S | ||
| Exterior mirror adjustment motor position/task/structure/function | GF88.79-P-4100S | ||
| Exterior mirror adjustment switch position/task/structure/function | GF88.79-P-4101S |
