Remove/install activated charcoal canister - AR47.30-P-8212GV

MODEL 463.209 /232 /233 /244 /245 /250 with ENGINE 112.945

MODEL 463.206 /240 /241 /247 /248, 463.249 up to 15.8.06, 463.254 with ENGINE 113.962

MODEL 463.243 /246 with ENGINE 113.982

MODEL 463.270 /271 with ENGINE 113.993

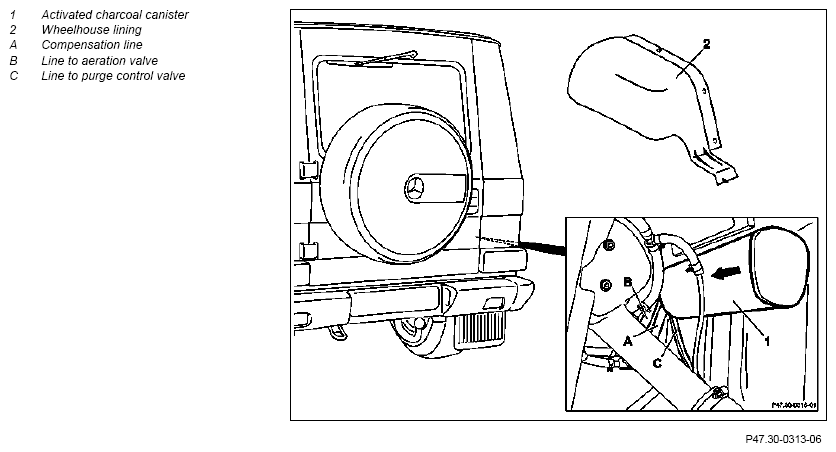

Fig 1: Identifying Activated Charcoal Canister Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right rear wheelhouse cover (2)
2	Unhook activated charcoal canister (1)	To do this push activated charcoal filter (1) in the direction of the arrow.
3	Detach lines at activated charcoal canister (1)	Detach compensation line (A), line to aeration valve (B) and line to purge control valve (C) on activated charcoal filter (1). Mark lines and connections before removal.
3	Detach lines at activated charcoal canister (1)	Installation: Connection diagram	AR47.30-P-8212-01V
4	Remove activated charcoal canister (1)	The activated charcoal canister (1) is maintenance free.
5	Install in the reverse order
