Fuel System -- G-Class (463)
>>
Testing & Repair
>>
Connection diagram for evaporative emission control system - AR47.30-P-8212-01V
Connection diagram for evaporative emission control system - AR47.30-P-8212-01V

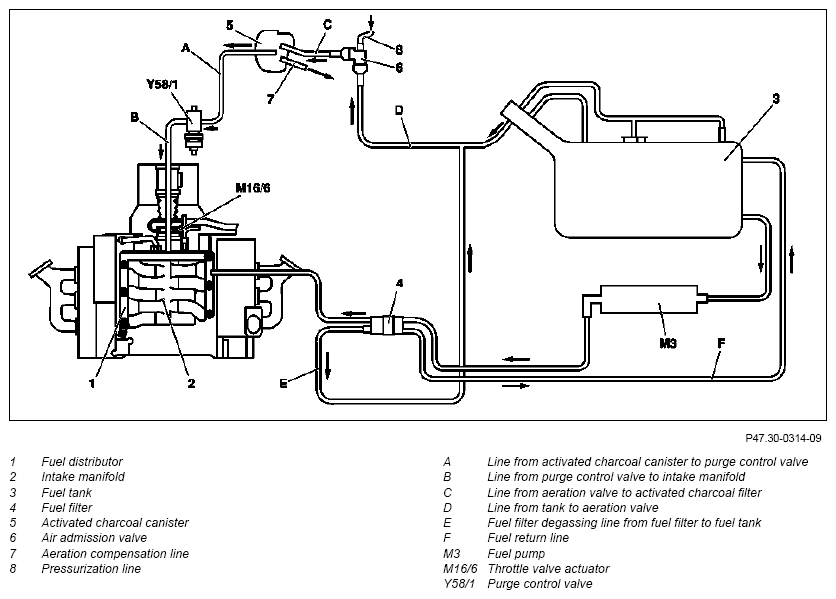

Fig 1: Identifying Evaporative Emission Control System Connection Diagram
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
