Removing and installing firewall pivot point with accelerator pedal lever - AR30.12-P-3022GR

ENGINE 112.945 in MODEL 463.244/245/250

ENGINE 113.962 in MODEL 463.247/248/249/254

ENGINE 612.965 in MODEL 463.322/323

ENGINE 628.962 in MODEL 463.309/332/333

ENGINE 113.982 in MODEL 463.243/246

ENGINE 113.993 in MODEL 463.270/271

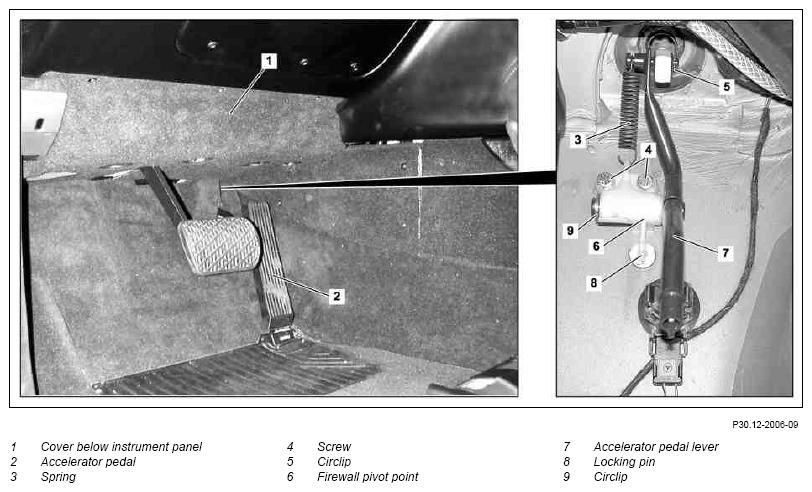

Fig 1: Identifying Accelerator Pedal Lever Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove cover under instrument panel (1)	Only remove left side. The ignition must be switched off.	AR68.10-P-1500GM
2	Remove accelerator pedal (2)		AR30.12-P-1321GR
3	Remove front floor covering
4	Remove spring (3)
5	Unscrew bolts (4) of firewall pivot point (6)
6	Remove locking ring (5)
7	Remove firewall pivot point (6) with accelerator pedal lever (7)	Installation:  The locking pin (8) must engage in the bore in the firewall.
8	Pull firewall pivot point (6) off accelerator pedal lever (7)	by detaching the circlip (9).
9	Install in the reverse order
