Remove/install accelerator pedal - AR30.12-P-1321GR

ENGINE 112.945 in MODEL 463.244/245/250

ENGINE 113.962 in MODEL 463.247/248/249/254

ENGINE 113.982 in MODEL 463.243/246

ENGINE 612.965 in MODEL 463.322/323

ENGINE 628.962 in MODEL 463.309/332/333

ENGINE 113.993 in MODEL 463.270/271

ENGINE 642.970 in MODEL 463.303/340/341

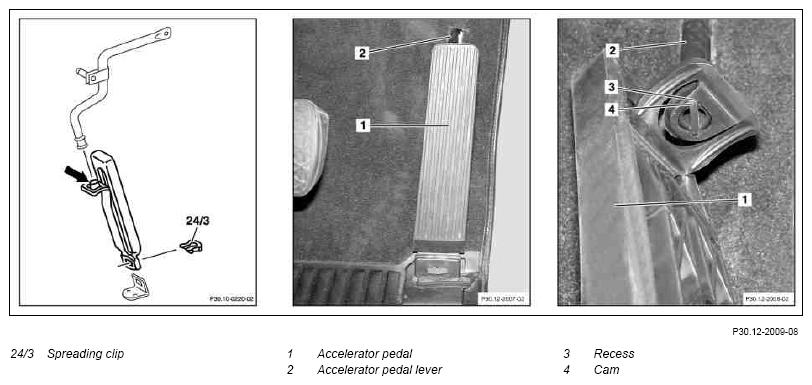

Fig 1: Identifying Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Pull out the spreading clip (24/3) backwards
2	Detach bottom end of accelerator pedal (1)
3	Turn the accelerator pedal (1) at the accelerator pedal lever (2) to the left	Turn until the recess (3) in the accelerator pedal (1) is over the cam (4) on the accelerator pedal rod (2).
4	Remove accelerator pedal (1)	For this, detach the accelerator pedal (1) from the accelerator pedal lever (2).
5	Install in the reverse order
