Location and assignment of ground points - GF00.19-P-2000FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
| W6/1 | Left taillamp trunk ground point | Location | GF00.19-P-2000-21FAA |
| Assignment | PE00.19-P-2800FAA | ||
| W7 | Right wheelhouse trunk ground point | Location | GF00.19-P-2000-09FAA |
| Assignment | PE00.19-P-2800FAI | ||
| W7/1 | Right taillamp trunk ground point | Location | GF00.19-P-2000-09FAA |
| Assignment | PE00.19-P-2800FAB | ||
| W7 | Right wheelhouse trunk ground point | Location | GF00.19-P-2000-21FAA |
| Assignment | PE00.19-P-2800FAI | ||
| W7/1 | Right taillamp trunk ground point | Location | GF00.19-P-2000-21FAA |
| Assignment | PE00.19-P-2800FAB | ||
| W7/2 | Ground (right side wall in trunk), USA | Location | GF00.19-P-2000-21FAA |
| Assignment | PE54.10-P-2103FAA | ||
| W9 | Left front ground point (at lamp unit) | Location | GF00.19-P-2000-01FAA |
| Assignment | PE00.19-P-2800FAB | ||
| W10 | Battery ground point | Location for M272 | GF00.19-P-2000-02FAA |
| Assignment | PE15.00-P-2101FAD | ||
| W10/7 | Left front battery ground point | Location for M272 | GF00.19-P-2000-01FAA |
| Assignment | PE15.00-P-2101FAD | ||
| W11w1 | Left cylinder bank ground point (engine) | Location for M272 | GF00.19-P-2000-01FAA |
| Assignment | PE00.19-P-2800FAB | ||
| W11w2 | Right cylinder bank ground point (engine) | Location for M272 | GF00.19-P-2000-02FAA |
| Assignment | PE00.19-P-2800FAB | ||
| W15/5 | Left front footwell ground point | Location | GF00.19-P-2000-04FAA |
| Assignment | PE00.19-P-2800FAC | ||
| W15/6 | Ground point (right front footwell CAN) | Location | GF00.19-P-2000-04FAA |
| Assignment | PE00.19-P-2800FAC | ||
| W15/7 | Right front footwell ground point | Location | GF00.19-P-2000-05FAA |
| Assignment | PE00.19-P-2800FAD | ||
| W15/8 | Ground point (right front footwell CAN) | Location | GF00.19-P-2000-05FAA |
| Assignment | PE00.19-P-2800FAD | ||
| W15/9 | PTC heater booster ground point, except AC, valid for MODEL 204.0 /2 /9 | Location | GF00.19-P-2000-04FAA |
| Assignment | PE83.40-P-2101FAA | ||
| W15/9 | PTC heater booster ground point, AC, THERMOTRONIC, valid for MODEL 204.0 /2/ 9 | Location | GF00.19-P-2000-04FAA |
| Assignment | PE83.40-P-2101FAC | ||
| W16/3 | Left major assembly compartment ground point | Location | GF00.19-P-2000-01FAA |
| Assignment | PE00.19-P-2800FAE | ||
| W16/4 | Right wheelhouse ground point | Location | GF00.19-P-2000-02FAA |
| Assignment | PE00.19-P-2800FAE | ||
| W16/5 | Left major assembly compartment electronics ground point | Location | GF00.19-P-2000-01FAA |
| Assignment | PE00.19-P-2800FAF | ||
| W16/6 | Right major assembly compartment ground point | Location | GF00.19-P-2000-02FAA |
| Assignment | PE00.19-P-2800FAF | ||
| W18 | Left front seat crossmember ground point | Location | GF00.19-P-2000-04FAA |
| Assignment | PE00.19-P-2800FAG | ||
| W18/3 | Left front seat crossmember ground point 2 | Location | GF00.19-P-2000-04FAA |
| Assignment | PE00.19-P-2800FAG | ||
| W19 | Right front seat crossmember ground point | Location | GF00.19-P-2000-05FAA |
| Assignment | PE00.19-P-2800FAH | ||
| W26 | Supplemental restraint system (SRS) control unit ground point | Location | GF00.19-P-2000-04FAA |
| Assignment | PE91.60-P-2105FAA | ||
| W29/3 | Left C-pillar ground point, valid for 204.0 | Location | GF00.19-P-2000-04FAA |
| Assignment | PE54.21-P-2108FAG | ||
| W29/4 | Right C-pillar ground point, valid for 204.0 | Location | GF00.19-P-2000-09FAA |
| Assignment | PE54.21-P-2108FAG | ||
| W33/4 | Fuel tank filler neck ground point | Location | GF00.19-P-2000-09FAA |
| Assignment | PE54.21-P-2108FAA | ||
| W52 | Ground (right front longitudinal member) | Location | GF00.19-P-2000-02FAA |
| Assignment | PE46.35-P-2101FAA | ||
| W70 | Electronic Stability Program ground point | Location | GF00.19-P-2000-01FAA |
| Assignment | PE42.47-P-2000FAA | ||
| W76 | Fuel pump ground point | Location for M271, M272 | GF00.19-P-2000-05FAA |
| Assignment | PE47.40-P-2101FAA |

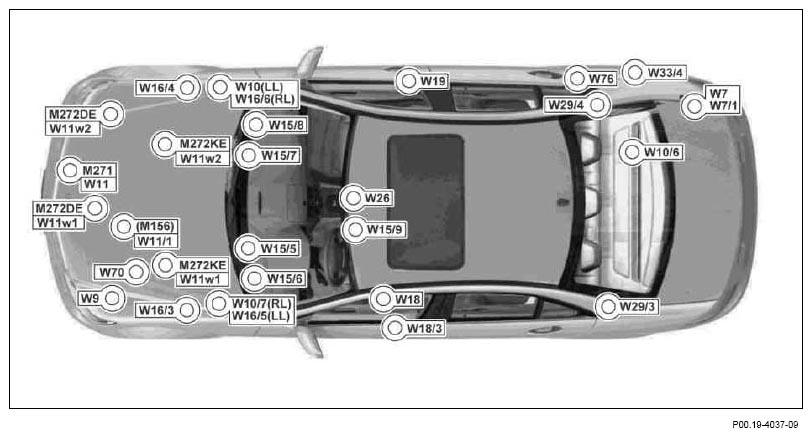

| Location and assignment of ground points, engine compartment, left | GF00.19-P-2000-01FAA |

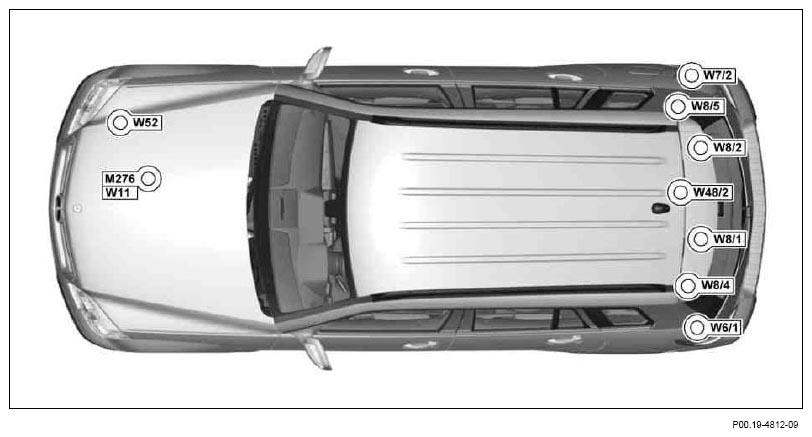

| Location and assignment of ground points, engine compartment, right | GF00.19-P-2000-02FAA |

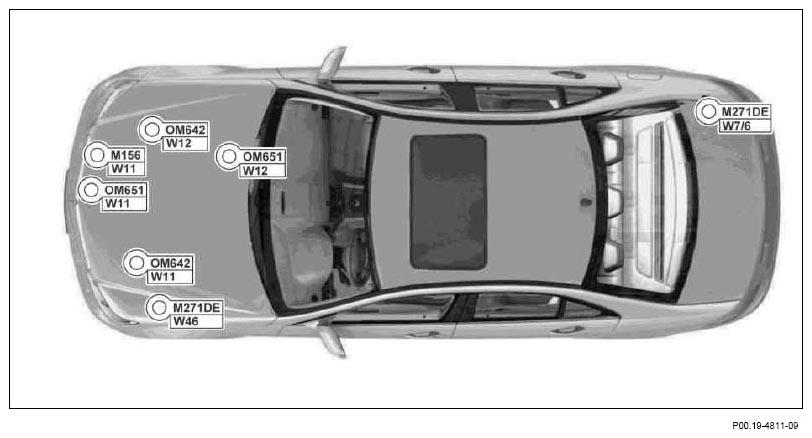

| Location and assignment of ground points - interior left | GF00.19-P-2000-04FAA |
| Location and assignment of ground points, interior compartment, right | GF00.19-P-2000-05FAA |

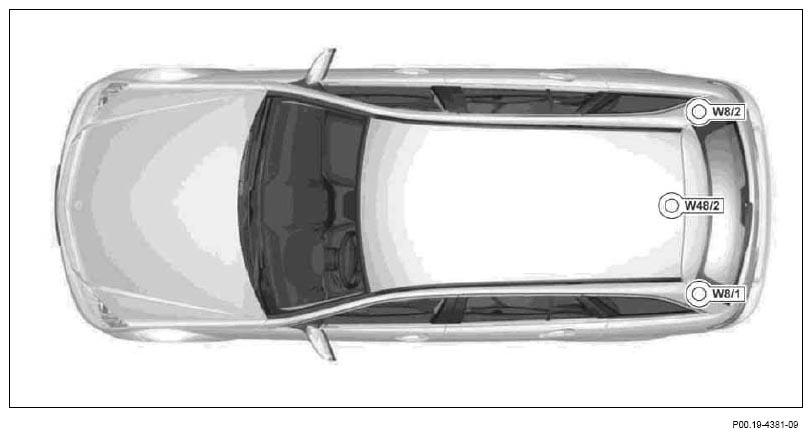

| Location and assignment of ground points - trunk right | GF00.19-P-2000-09FAA |
| Location and assignment of ground points - rear-end | GF00.19-P-2000-21FAA |
