Location and assignment of ground points, engine compartment, left - GF00.19-P-2000-01FAA

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

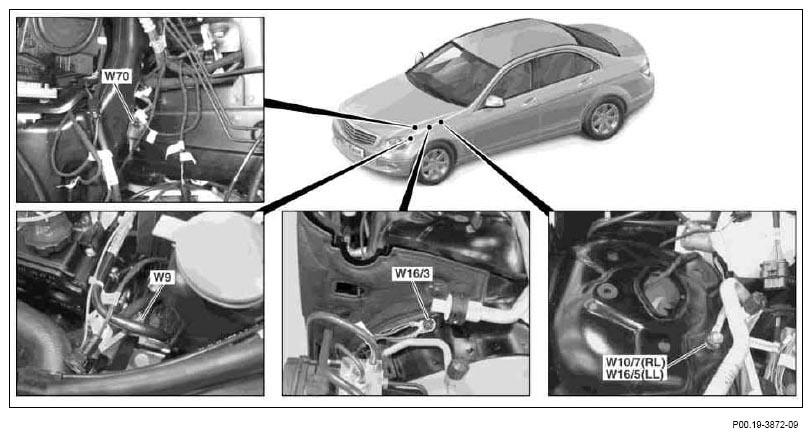

Fig 1: Locating Ground Points Of Engine Compartment - Left (1 Of 3)
G07520499Courtesy of MERCEDES-BENZ USA

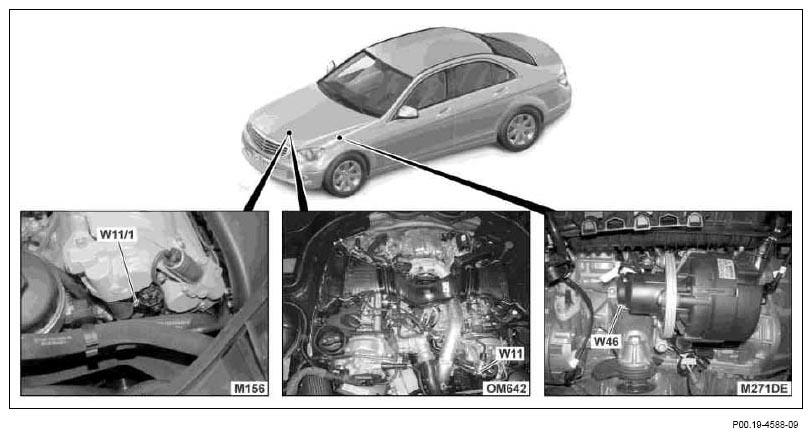

Fig 2: Locating Ground Points Of Engine Compartment - Left (2 Of 3)
G07520500Courtesy of MERCEDES-BENZ USA

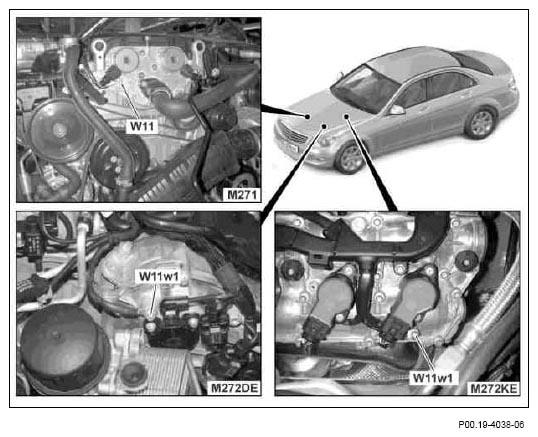

Fig 3: Locating Ground Points Of Engine Compartment - Left (3 Of 3)
G07520501Courtesy of MERCEDES-BENZ USA
