Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000FAA

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204

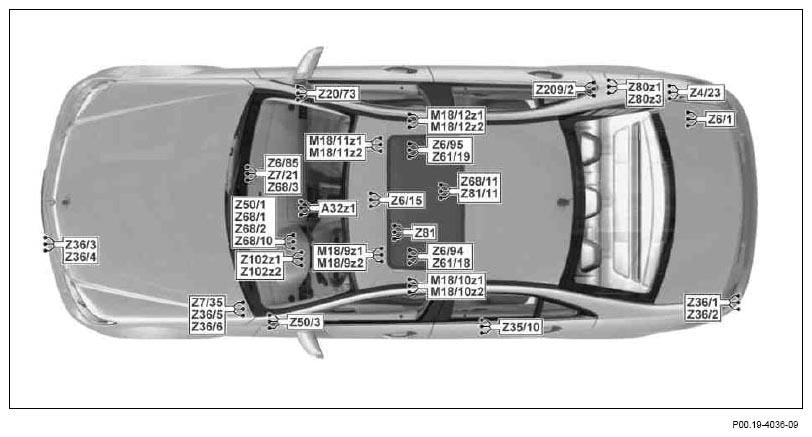

Fig 1: Locating Z Connector Sleeves (1 Of 8)
G07520534Courtesy of MERCEDES-BENZ USA

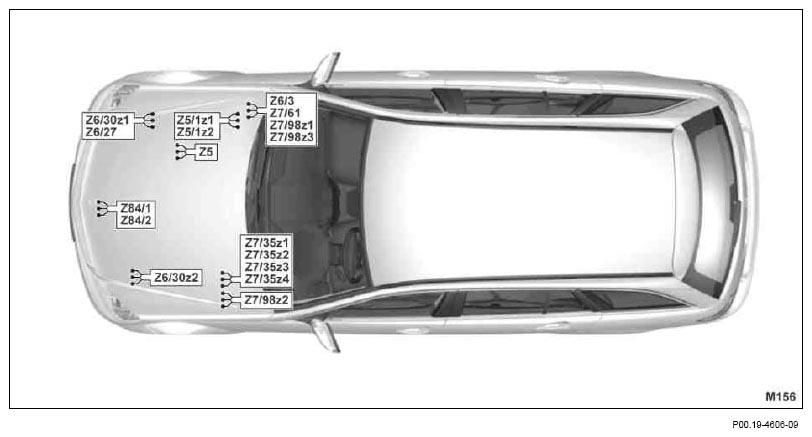

Fig 2: Locating Z Connector Sleeves (2 Of 8)
G07520535Courtesy of MERCEDES-BENZ USA

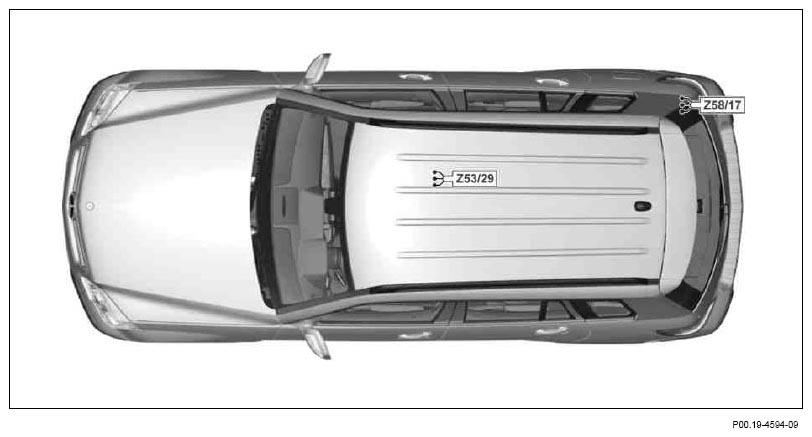

Fig 3: Locating Z Connector Sleeves (3 Of 8)
G07520536Courtesy of MERCEDES-BENZ USA

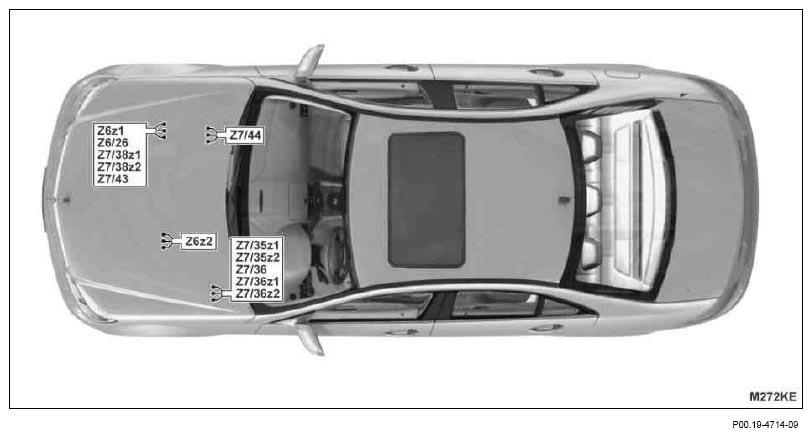

Fig 4: Locating Z Connector Sleeves (4 Of 8)
G07520537Courtesy of MERCEDES-BENZ USA

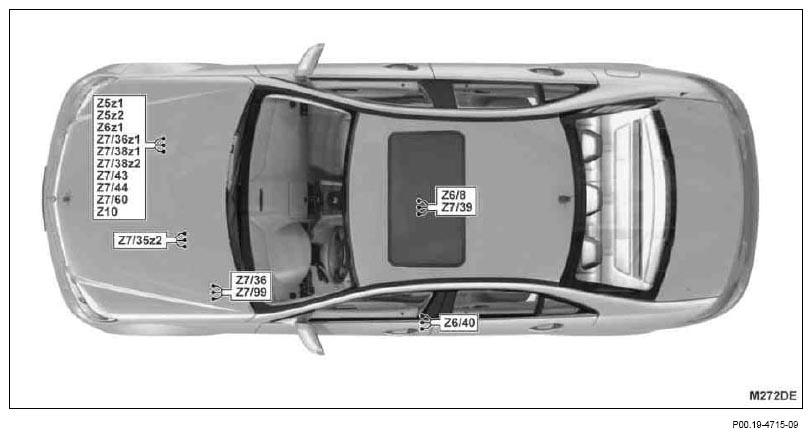

Fig 5: Locating Z Connector Sleeves (5 Of 8)
G07520538Courtesy of MERCEDES-BENZ USA

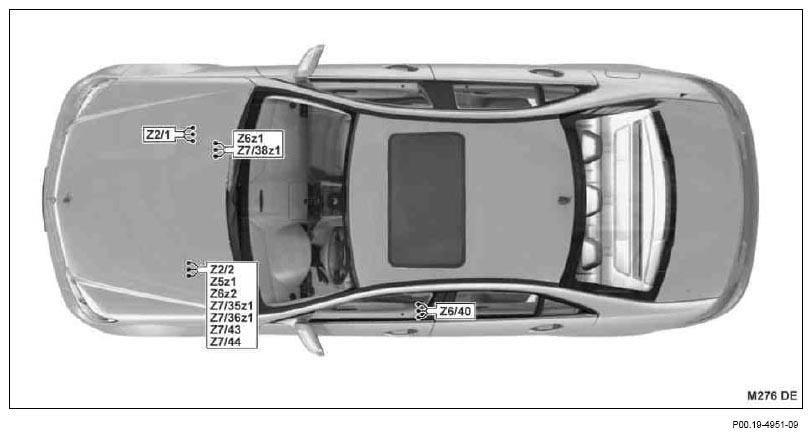

Fig 6: Locating Z Connector Sleeves (6 Of 8)
G07520539Courtesy of MERCEDES-BENZ USA

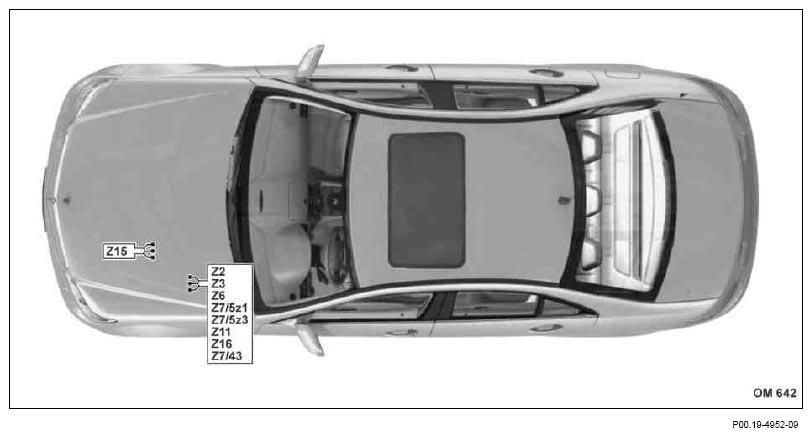

Fig 7: Locating Z Connector Sleeves (7 Of 8)
G07520540Courtesy of MERCEDES-BENZ USA

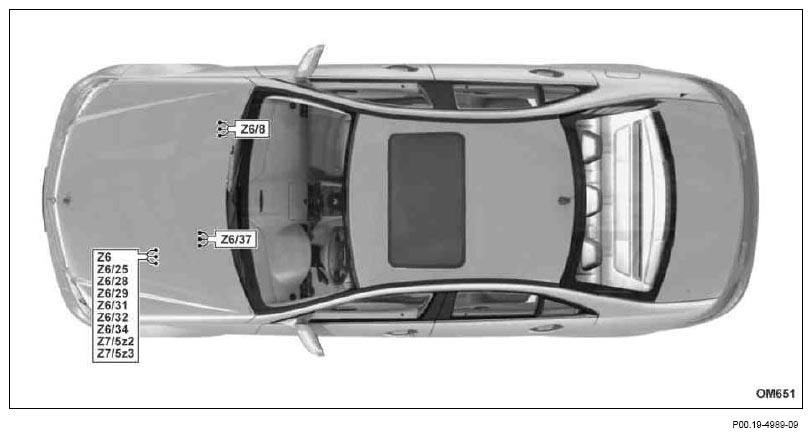

Fig 8: Locating Z Connector Sleeves (8 Of 8)
G07520541Courtesy of MERCEDES-BENZ USA
A32z1 Air conditioner housing connector sleeve, except automatic air conditioning Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
A32z1 Air conditioner housing connector sleeve, automatic air conditioning, THERMOTRONIC Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAC
M18/9z1 Left front seat cushion seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/9z2 Left front seat cushion seat ventilation motor ground connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/10z1 Left front backrest seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/10z2 Left front backrest seat ventilation motor ground connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/11z1 Right front seat cushion seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
M18/11z2 Right front seat cushion seat ventilation motor ground connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
M18/12z1 Right front backrest seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
M18/12z2 Right front backrest seat ventilation motor ground connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
Z4/23 Antenna circuit 30 connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE54.21-P-2108FAC
Z5 Connector sleeve in wiring harness, DVD, valid for MODEL 204.9 Location GF00.19-P-3000-02FAA
Z6/1 Circuit 31 connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE54.21-P-2108FAD
Z6/15 Right seat belt buckle circuit 31 connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.60-P-2105FAA
Z6/26 Sensor voltage supply connector sleeve Location for M272 KE GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAC
Z6/85 Sensor ground connector sleeve, except automatic air conditioning Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
Z6/85 Sensor ground connector sleeve, automatic air conditioning, THERMOTRONIC Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z6/94 Driver seat connector sleeve circuit 31, ESV, fully electric Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2004FAA
Z6/94 Driver seat connector sleeve circuit 31, lumbar support control unit Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAA
Z6/94 Driver seat connector sleeve circuit 31, lumbar support switch Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAB
Z6/95 Passenger seat connector sleeve circuit 31, ESV, fully electric Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2004FAA
Z6/95 Front passenger seat connector sleeve circuit 31, lumbar support control unit Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAA
Z6/95 Passenger seat connector sleeve circuit 31, lumbar support switch Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAB
Z7/21 Circuit 30 air conditioning connector sleeve, except automatic air conditioning Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
Z7/21 Circuit 30 air conditioning connector sleeve, automatic air conditioning, THERMOTRONIC Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z7/36 Circuit 87 M2e connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAB
Z7/36 Circuit 87 M2e connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAC
Z20/73 Tracer wire connector sleeve, radio, except Japan Location GF00.19-P-3000-05FAA
    Assignment PE82.60-P-2101FAA
Z20/73 Tracer wire connector sleeve, APS, except Japan, except USA Location GF00.19-P-3000-05FAA
    Assignment PE82.61-P-2101FAA
Z20/73 Tracer wire connector sleeve, COMAND, except Japan Location GF00.19-P-3000-05FAA
    Assignment PE82.61-P-2101FAA
Z20/73 Tracer wire connector sleeve, COMAND, Japan Location GF00.19-P-3000-05FAA
    Assignment PE82.85-P-2101FAB
Z35/10 MOST wake-up signal connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE82.00-P-2710FAA
Z36/1 Rear Parktronic system sensors ground line connector sleeve, DTR Location GF00.19-P-3000-06FAA
    Assignment PE30.30-P-2101FAA
Z36/1 Rear PARKTRONIC system sensors ground line connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE54.65-P-2101FAA
Z36/2 Rear Parktronic system sensors positive line connector sleeve, DTR Location GF00.19-P-3000-06FAA
    Assignment PE30.30-P-2101FAA
Z36/2 Rear PARKTRONIC system sensors positive lead connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE54.65-P-2101FAA
Z36/3 Front Parktronic system sensors ground line connector sleeve, DTR Location GF00.19-P-3000-01FAA
    Assignment PE30.30-P-2101FAA
Z36/3 Front PARKTRONIC system sensors ground line connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE54.65-P-2101FAA
Z36/4 Front Parktronic system sensors positive line connector sleeve, DTR Location GF00.19-P-3000-01FAA
    Assignment PE30.30-P-2101FAA
Z36/4 Front PARKTRONIC system sensors positive lead connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE54.65-P-2101FAA
Z36/5 Headlamp range adjustment sensor ground connector sleeve, Xenon, valid for MODEL 204.0 /2 Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAA
Z36/5 Headlamp range adjustment sensor ground connector sleeve, Xenon, valid for MODEL 204.9 Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAC
Z36/6 Sensor power supply connector sleeve, Xenon, valid for MODEL 204.0 /2 Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAA
Z36/6 Sensor power supply connector sleeve, Xenon, valid for MODEL 204.9 Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAC
Z50/1 Circuit 58d instrument panel connector sleeve, except automatic air conditioning Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
Z50/1 Circuit 58d instrument panel connector sleeve, automatic air conditioning Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z50/3 Circuit 31 instrument panel connector sleeve, except automatic air conditioning Location GF00.19-P-3000-04FAA
    Assignment PE83.40-P-2101FAA
Z50/3 Circuit 31 instrument panel connector sleeve, automatic air conditioning Location GF00.19-P-3000-04FAA
    Assignment PE83.40-P-2101FAB
Z58/17 Circuit 58 trailer socket connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE31.19-P-2101FAA
Z61/18 Circuit 15R connector sleeve for left seat, ESV, fully electric Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2004FAA
Z61/18 Circuit 15R connector sleeve for left seat, lumbar support control unit Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAA
Z61/18 Circuit 15R connector sleeve for left seat, lumbar support switch Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAB
Z61/19 Circuit 15R connector sleeve for right seat, ESV, fully electric Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2004FAA
Z61/19 Circuit 15R connector sleeve for right seat, lumbar support control unit Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAA
Z61/19 Circuit 15R connector sleeve for right seat, lumbar support switch Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAB
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2119FAA
Z68/1 Instrument panel air conditioning LIN circuit 31 connector sleeve, Xenon, valid for MODEL 204.0 /2 Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAA
Z68/1 Instrument panel air conditioning LIN circuit 31 connector sleeve, except Xenon Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAB
Z68/2 Instrument panel air conditioning LIN positive line connector sleeve, valid for MODEL 204.0 /2 /9 Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2119FAA
Z68/2 Instrument panel air conditioning LIN positive line connector sleeve, Xenon, valid for MODEL 204.0 /2 Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAA
Z68/2 Instrument panel air conditioning LIN positive line connector sleeve, except Xenon Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAB
Z68/3 Vehicle interior LIN bus ground line connector sleeve, AC, valid for MODEL 204.0 /2 /9 Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z68/10 Instrument panel LIN connector sleeve, valid for MODEL 204.0 /2 /9 Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2119FAA
Z68/10 Instrument panel LIN connector sleeve, Xenon, valid for MODEL 204.0 /2 Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAA
Z68/10 Instrument panel LIN connector sleeve, except Xenon Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAB
Z68/11 Rear air conditioning LIN bus ground line connector sleeve, AC, valid for MODEL 204.0 /2 /9 Location GF00.19-P-3000-05FAA
    Assignment PE83.40-P-2101FAB
Z80z1 Cross section reduction connector sleeve, valid for M272 in MODEL 204 Location GF00.19-P-3000-07FAA
    Assignment PE07.61-P-2101FAD
Z80z3 Cross section reduction connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE54.21-P-2106FAD
Z81 Connector sleeve circuit 58d, TELE AID, USA   GF00.19-P-3000-04FAA
    Assignment PE82.95-P-2101FAA
Z81/11 Connector sleeve circuit 58d air conditioning, AC, valid for MODEL 204.0 /2 /9 Location GF00.19-P-3000-05FAA
    Assignment PE83.40-P-2101FAB
Z102z1 Steering column adjustment connector sleeve, ESV, fully electric Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2004FAA
Z102z1 Steering column adjustment connector sleeve, memory package Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2105FAA
Z102z2 Steering column adjustment connector sleeve, ESV, fully electric Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2004FAA
Z102z2 Steering column adjustment connector sleeve, memory package Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2105FAA
