Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right - GF00.19-P-3000-02FAA

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

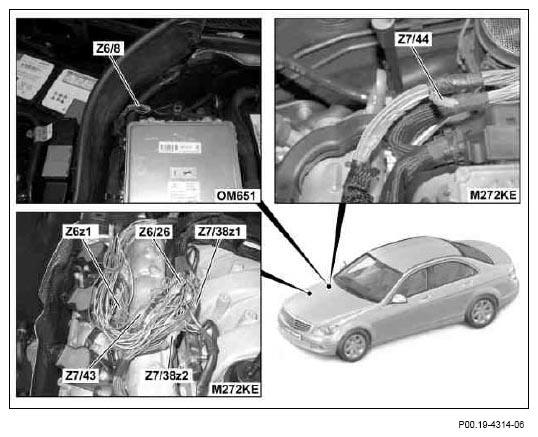

Fig 1: Locating Engine Compartment Z Connector Sleeves - Right (1 Of 3)
G07520521Courtesy of MERCEDES-BENZ USA

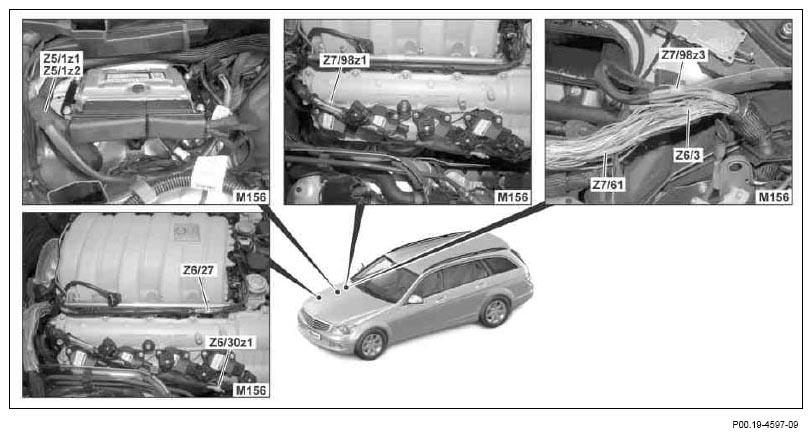

Fig 2: Locating Engine Compartment Z Connector Sleeves - Right (2 Of 3)
G07520522Courtesy of MERCEDES-BENZ USA

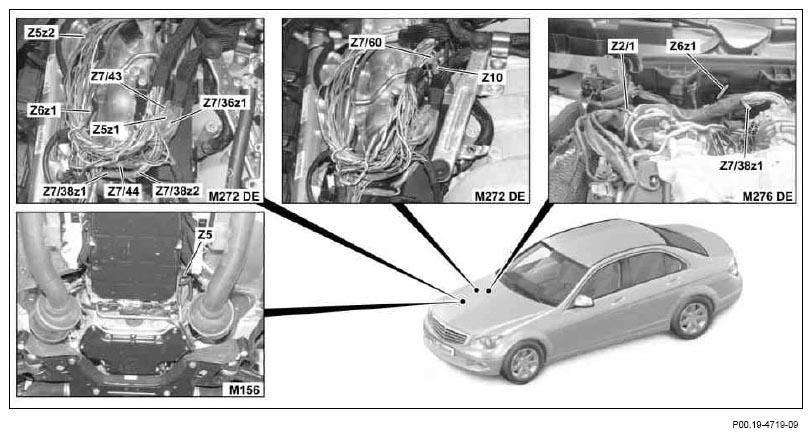

Fig 3: Locating Engine Compartment Z Connector Sleeves - Right (3 Of 3)
G07520523Courtesy of MERCEDES-BENZ USA
