Remove/install sensor - AR54.70-P-0001I
MODEL 215, 220 with CODE (219a) Distronic (DTR)
Shown on Model 220

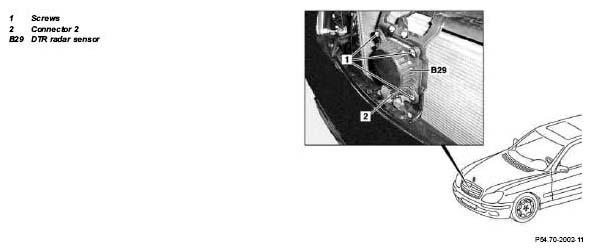

| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Engine hood | Open | AR88.40-P-1000M | |
| 1 | Bolts | unscrew | |
| 2 | Clutch | detach | |
| B29 | DTR radar sensor | ||
| Check, correct Distronic (DTR) sensor adjustment | AR30.30-P-1000R |
