Remove/install curtain rail - AR68.50-P-5600ML: Notes

MODELS 220.175 /178 with CODE (Z07) Top protection bottom curtain rail, for electrically actuated curtain at the rear window

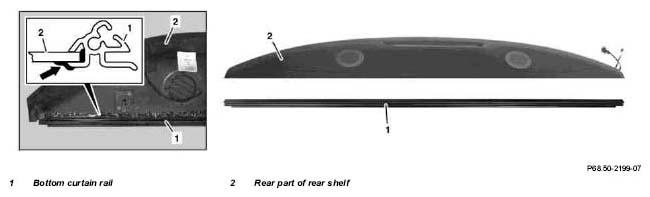

Fig 1: Identifying Curtain Rail Remove/Install Components - Model 220.175/178

	Remove
1	Remove parcel shelf		AR68.30-P-4580MB
2	Detach bottom curtain rail (1) from rear part of rear shelf (2)	Detach hot adhesive with blade across the entire length (arrow). As a replacement part, only the new version of the bottom curtain rail is available.
3	Transfer drive cables for rear window curtain	Only if the bottom curtain rail (old version) is replaced. Use corresponding conversion kit.	AR68.50-P-5600-01MB
4	Check length of drive cables for rear window curtain	If protrusion is more than 2 mm. ↓	AR68.50-P-5605-01MC
		Shorten cord of drive cable for rear window curtain.	AR68.50-P-5605-02MB
		Centering aid for bore in drive cable.	WF58.50-P-6850-02MB
	Install
5	Position bottom curtain rail (1) against rear part of rear shelf (2) in center and affix	Affix using hot adhesive across the entire length (arrow). Possible alternatives:
		Beta Seal adhesive. (Observe drying time)	*BR00.45-Z-1005-02A
6	Install rear shelf		AR68.30-P-4580MB
