Transfer drive cables for rear window curtain - AR68.50-P-5600-01MB

Unscrew bolt (1) and detach driver (2) from cord (3).
Detach clamp (5) and pull sleeve (4.1) out of cable (6).
If necessary, heat outer jacket of cable (6) in area of sleeve (4.1).

Fig 1: Identifying Detach Driver, Clamp And Bolt
Attach clamp (5) to cable (6).
Note installation position of clamp (screw head toward vehicle interior and opposite the curtain rail).
Insert guide tube (4.2) into the cable (6).
Secure guide tube (4.2) using clamp (5).
Secure driver (2) to cord (3) using screw (1).
Driver must be able to turn slightly (free of clearance).

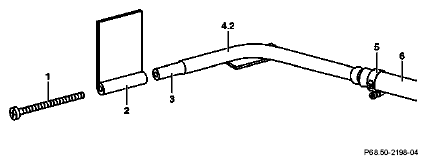

Fig 2: Identifying Guide Tube, Clamp And Cable
