Retrofit fixed-installation telephone - AN82.70-P-0003ME

MODELS 220.026 /028 /063 /065 /070 /075 /128 /165 /170 /175 /178 1# as of 1.7.01 up to 30.6.02 except CODE (855) TELE AID with CODE (352a) COMAND operating and display system with CODE (750a) MB Audio 30 RDS radio with CODE (753) MB Audio 30 RDS radio with CODE (756a) MB Audio 10 RDS radio with CD compartment

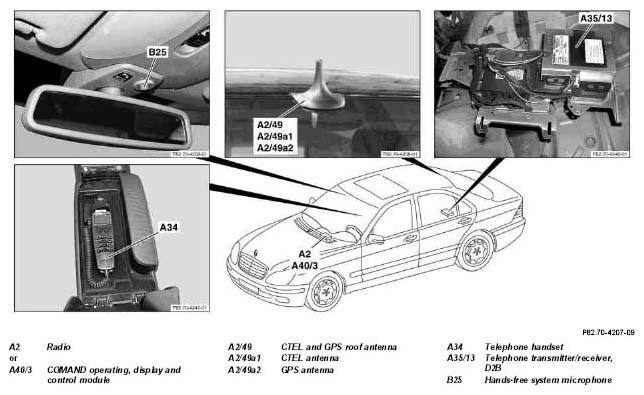

Fig 1: Identifying Fixed-Installation Telephone Components Location - Models 220.026 /028 /063 /065 /070

	Removal
1	Remove front seats
			AR91.10-P-1000M
2	Connect quiescent current retention device		*WH58.30-Z-1012-09A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged leadacid batteries	No fire, sparks, naked flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
3	Disconnect ground line of battery
			AR54.10-P-0003I
	Notes on battery	All types.	AH54.10-P-0001-01A
4.1	Remove radio
		In vehicles with code (750a) MB Audio 30 RDS radio, code (753) MB Audio 10 RDS radio or code (756a) MB Audio 10 RDS radio with CD tray.	AR82.60-P-7502I
4.2	Remove operating and display unit with control module	In vehicles with COMAND operating and display system COMAND (Code 352a).
			AR82.85-P-7472I
5	Remove center console
			AR68.20-P-2000M
6.1	Remove rear air conditioning unit.	In vehicles with  air conditioning in rear (code 582).
			AR83.50-P-9020M
7	Remove rear seat cushion
		In vehicles without  individual seats (code 401).	AR91.12-P-1020MA
		In vehicles with  individual seats (code 401).	AR91.12-P-1020M
8	Remove rear seat backrest
		For vehicles without  individual seats (code 401).	AR91.12-P-1620MA
		In vehicles with  individual seats (code 401).	AR91.12-P-1620M
9.1	Remove seat adjustment mechanism on rear seat
		In vehicles with  individual seats (code 401).	AR91.12-P-1520M
10	Remove rear passenger compartment floor covering
			AR68.20-P-4800M
11	Remove front floor covering (left)
			AR68.20-P-2050M
12	Remove front floor covering (right)
			AR68.20-P-2070M
13	Open right cable ducts
14	Open left wiring ducts
15	Remove trim on right C-pillar
			AR68.30-P-4490M
16	Slacken rear shelf at right side	Raise so that wiring harness can be routed.
17	Remove side paneling on left and right in trunk
			AR68.30-P-4600M
18.1	Remove CD player with changer	In vehicles with (code 819) CD changer in trunk (A2/6), slacken and put aside.
			AR82.64-P-7507I
19	Remove and install SAM control module with fuse and relay box, left front.	Do not remove completely, only do so far enough to enable an additional cable to be pulled through from driver's footwell and connected to fuse and relay box.
			AR54.21-P-1260I
	Install
20.1	Retrofit fiber optic wiring harness	Vehicles without  sound system (code 810) and without  CD changer (code 819).	AN82.70-P-0002-01ME
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.
			AR82.95-P-0005-01A
20.2	Retrofit fiber optic wiring harness	Vehicles with  sound system (code 810) and without  CD changer (code 819).	AN82.70-P-0002-01MG
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.
			AR82.95-P-0005-01A
20.3	Retrofit fiber optic wiring harness	Vehicles with  CD changer (code 819) and without  sound system (code 810).	AN82.70-P-0002-01MG
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.
			AR82.95-P-0005-01A
20.4	Retrofit fiber optic wiring harness	Vehicles with  sound system (code 810) and with  CD changer (code 819).	AN82.70-P-0002-01MF
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.
			AR82.95-P-0005-01A
21	Retrofit telephone cable harness	Feed cable harness	AN82.70-P-0002-03ME
22	Install CTEL D2B transmitter/receiver unit		AN82.70-P-0001-05ME
23.1	Retrofit CTEL/GPS antenna	Only if not yet installed. Except codes 354/852/853/854/855.	AZ82.70-P-0001-08IA
24	Retrofit handset in armrest		AN82.70-P-8916-06ME
25.1	Retrofit hands-free microphone	Only if not yet installed.	AN82.70-P-8969-04MA
26	Reassemble vehicle	Operations 18 to 1.
27	Perform startup and function check	Carry out variant coding (CTEL) using STAR diagnosis
28	Enter special equipment on online vehicle data card	Code 853 fixed telephone installation.
