Retrofitting headlamp cleaning system - AN82.15-P-0001M: Notes
MODEL 220.### 1#
| Removal | |||
| 1 | Remove washer fluid reservoir of headlamp cleaning system and drain | ||
| AR82.35-P-6000M | |||
| 2 | Remove bottom engine compartment paneling | ||
| AR61.20-P-1105M | |||
| 3 | Remove front bumper | ||
| AR88.20-P-2000M | |||
| 4 | Remove exterior lamp switch (S1) | ||
| Installation | |||

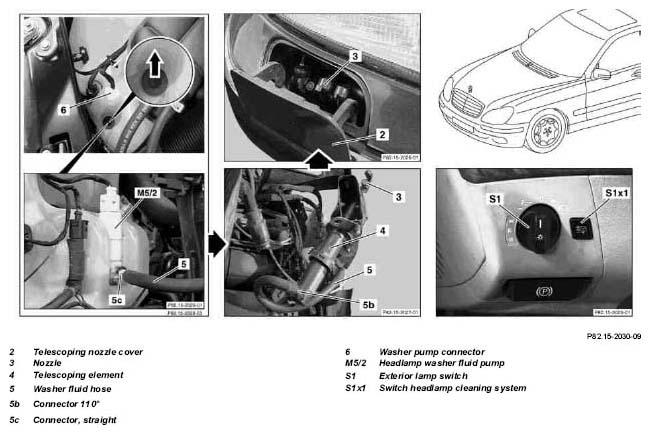

| 5 | Install telescoping nozzle headlamp of cleaning system | ||
| AR82.15-P-6100M | |||
| 6 | Retrofit washer fluid reservoir and washer fluid hose | AN82.15-P-0001-03M | |
| 7 | Install front bumper with covers for headlamp cleaning system | ||
| AR88.20-P-2000M | |||
| 8 | Install exterior lamp switch (S1) with headlamp cleaning system switch (S1x1) | ||
| 9 | Complete vehicle | ||
| Checking | |||
| 10 | Check headlamp cleaning system fluid level, correct | ||
| AP82.35-P-8210Z | |||
| 11 | Perform version coding for "headlamp cleaning system" | ||
| 12 | Check for proper function |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG54 | Exterior lamp switch | 1 |
| KG88 | Front bumper with covers for headlamp cleaning system | 1 |
| KG86 | Centrifugal pump | 1 |
| KG86 | Telescoping nozzle with one insert nozzle each (right and left different) and mounting parts | 2 |
| KG86 | T-fitting and hose (center, right and left) | 4 |
| KG86 | Connector (110°) | 2 |
| KG86 | Connector (straight) | 1 |
| KG99 | Grommet for centrifugal pump | 1 |
