Remove/install front bumper - AR88.20-P-2000M

MODEL 215.373 /374 /375 /376 /378 /379

MODEL 220.025 /026 /028 /063 /065 /070 /073 /075 /125 /128 /165 /170 /173 /175 /176 /178 /179 /875 /878

Model 220

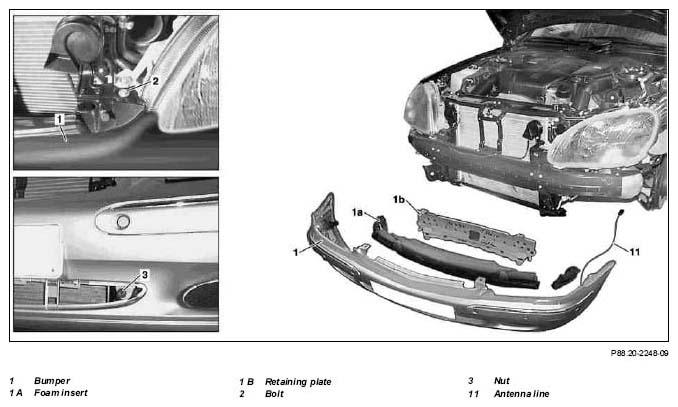

Fig 1: Identifying Front Bumper Remove/Install Components - Model 220 (1 Of 2)

Model 220

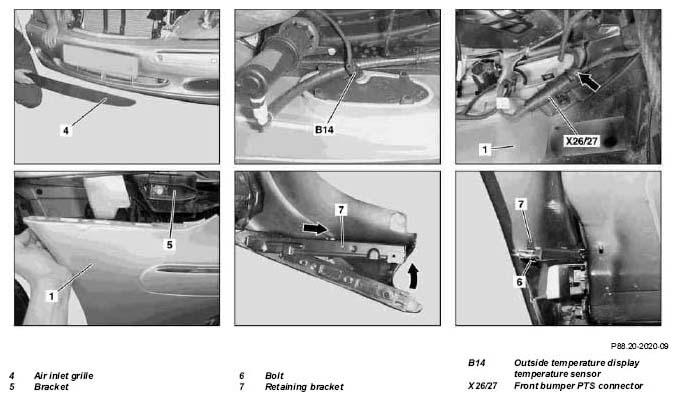

Fig 2: Identifying Front Bumper Remove/Install Components - Model 220 (2 Of 2)

Model 215

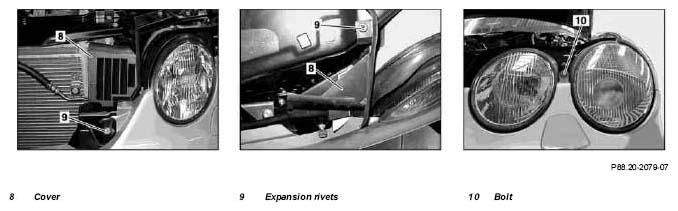

Fig 3: Identifying Cover, Expansion Rivets And Bolt - Model 215

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Expose antenna line (11) for TV antenna	Electrical plug socket in left fuse box. Installation:  Install new tie straps.
2.1	Remove bottom engine compartment paneling	Engine 112, 113, 137, 275 Only remove front part	AR61.20-P-1105M
3.1	Remove bottom part of noise encapsulation	Engine 613, 628, 648 Only remove front part	AR94.30-P-5300M
4	Pull outside temperature display temperature sensor (B14) out of bumper
5	Unlock and separate front bumper PTS connector (X26/27)	To unlock, pivot lock flap in direction of arrow.
6	Remove fender liner from front fender	Remove only front section of fender liner.	AR88.10-P-1300M
7	Unscrew bolt (6)
8	Pivot retaining bracket (7) toward center of vehicle, pull out to rear and remove
9.1	Remove expansion rivets (9) and cover (8)	Model 215
10.1	Remove bolt (10)	Model 215
11	Unscrew bolt (2)
12	Unclip air inlet grate (4)	Do not damage paint.
13	Unscrew nuts (3).
14	Remove bumper (1) toward front	Installation:  Ensure that retainer tabs on rear bumper (1) are pushed behind bracket (5)
15.1	Modify AMG bumper	See installation instructions for accessories: ↓ Model 215
		Retrofit AMG trims Model 220	AZ88.00-P-0001K
		Retrofit AMG trims	AZ88.00-P-0001F
16	Install in the reverse order
