Retrofit cell phone - AN82.70-P-0002MB: Notes

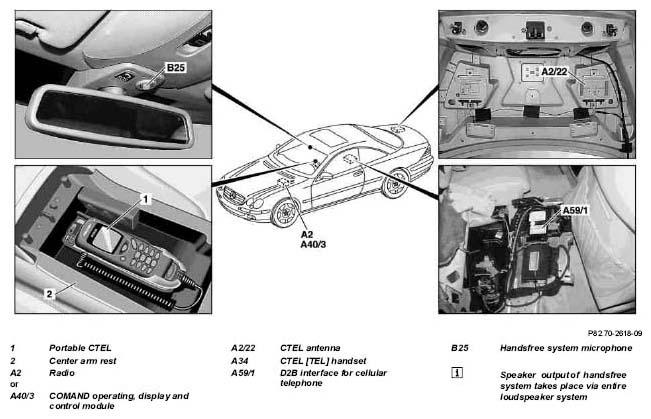

MODEL 215 up to 30.6.00 with CODE (750a) MB radio Audio 30 RDS

MODEL 215 up to 30.6.00 with CODE (750a) MB radio Audio 30 RDS with CODE (810) Sound system with CODE (819) 6-disk CD changer

MODEL 215 up to 30.6.00 with CODE (352a) COMAND operating and display system

MODEL 215 up to 30.6.00 with CODE (352a) COMAND operating and display system with CODE (810) Sound system with CODE (819) 6-disk CD changer

	Notes on fiber optic		AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003I
2.1	Remove radio
			AR82.60-P-7502N
2.2	Remove/install operating, display and control module	with COMAND (code 352a) operating and display system
			AR82.85-P-7472N
3	Remove rear passenger compartment floor covering
			AR68.20-P-4800N
4.1	Open right wiring duct
4.2	Open left wiring duct	With sound system (code 810)
5	Remove rear backrest
			AR91.12-P-1620MA
6	Remove quarter panel	Left side only.
			AR68.30-P-1450N
7	Remove coverings in trunk
			AR68.30-P-4600M
8	Remove/install SAM with fuse and relay box, left front	Do not remove completely, only do so far enough to enable an additional cable to be pulled through from driver's footwell and connected to fuse and relay box.
			AR54.21-P-1260I
	Install
9	Install optical waveguide module
			AR82.70-P-0004-01A
10.1	Retrofit fiber optic wiring harness	except code 810, code 819.	AN82.70-P-0002-01MA
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.	AR82.95-P-0005-01A
		Install covers on fiber-optic coupling and equipment connector.
10.2	Retrofit fiber optic wiring harness	with code 810, code 819.	AN82.70-P-0002-01MB
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.	AR82.95-P-0005-01A
		Install covers on fiber-optic coupling and equipment connector.
11	Retrofit telephone cable harness	Voltage supply wiring harness	AN82.70-P-0002-03MA
12	Retrofit interface		AZ82.70-P-0001-07IA
13	Retrofit antenna		AN82.62-P-0001-02IA
14	Retrofit handset	Portable CTEL bracket	AZ82.70-P-0001-09IB
15	Retrofit handsfree microphone		AN82.70-P-8969-04MA
16	Installation proceeds in reverse order	Steps 1, 2, 3, 4, 5, 6, 7, 8.
17	Perform startup and function check	Carry out control unit coding (CTEL) using STAR diagnosis
18	when scope of equipment changes reenter code or designation of corresponding special equipment on vehicle card

Part no.	Designation	Quantity
Design Group 82 (see EPC)	Mobile phone Nokia 3110	1
Design Group 82 (see EPC)	Battery unit (rechargeable battery for mobile phone)	1
Design Group 82 (see EPC)	Assy. mobile phone mount 3110	1
Design Group 82 (see EPC)	Adapter plate for assy. mount LHD	1
Design Group 82 (see EPC)	Cable, voltage supply in center armrest	1
Design Group 82 (see EPC)	RF cable in center armrest	1
Design Group 82 (see EPC)	Cable harness	1
Design Group 82 (see EPC)	Floor panel (if not fitted)	1
A140 990 02 50	Collared plate nut for fastening floor panel (if not fitted)	3
N 914 128 004 200	Self-tapping collared screw for fastening floor panel (if not fitted)	1
Design Group 82 (see EPC)	Mobile phone control module (interface)	1
A001 990 21 36	PT screw for control module	2
Design group 69 (see EPC)	Mirror cover plate (Color depending on interior equipment - 7D431A26AG691A36+equipment)	1
Design Group 82 (see EPC)	Nokia 3110 CTEL antenna	1
A000 995 04 14	Line fastener	1
A201 990 01 92	Expanding rivet	1
	Cable harness/optical waveguide D2B differs according to equipment, which was fitted before installation
	No code 810 or code 819 installed in the vehicle
Design Group 82 (see EPC)	Cable harness D2B	1
	Code 810 or code 819 installed in the vehicle/code 810 and code 819 installed in the vehicle
Design Group 82 (see EPC)	Optical waveguide module (order with length 7575 mm)	1
Design Group 82 (see EPC)	Fiber optic cable module (order with length specification 3285 mm)	1
Design Group 82 (see EPC)	D2B clutch housing	1
Design Group 82 (see EPC)	D2B housing cover	1
