Parking Brake Pedal Assembly
NOTE:
Letters and numbers in parenthesis correspond to letters and numbers in illustrations.
- Raise and support vehicle.
- Pre-tension automatic cable slack adjuster by turning detent eccentric bolt (g) to the left using appropriate size Allen wrench (approximately half a turn) and simultaneously push backwards in slot until spring loaded detent eccentric (b) engages with raised section (h) in hold down clip (d). See Figure .

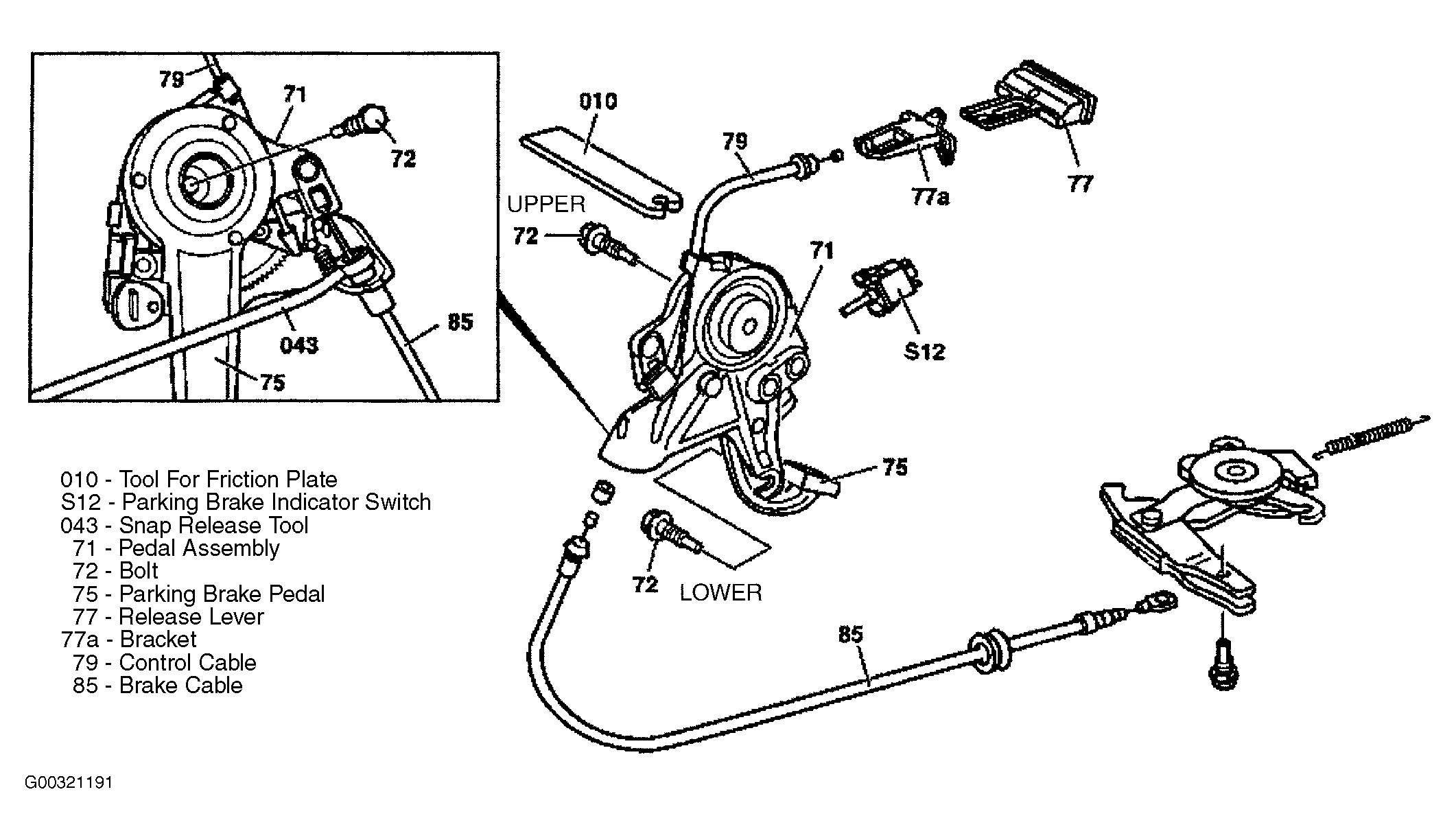

- Remove cover of parking brake pedal assembly (71). See Fig 1 .
- Remove parking brake indicator switch (S12).
- Remove brake cable (85) from tensioning shackle at parking brake pedal (75) and unclip from holding lug using Snap Release Tool (043).
- Remove parking brake pedal assembly upper bolt (72). Loosen lower bolt (72) and remove parking brake pedal assembly from lower bolt.

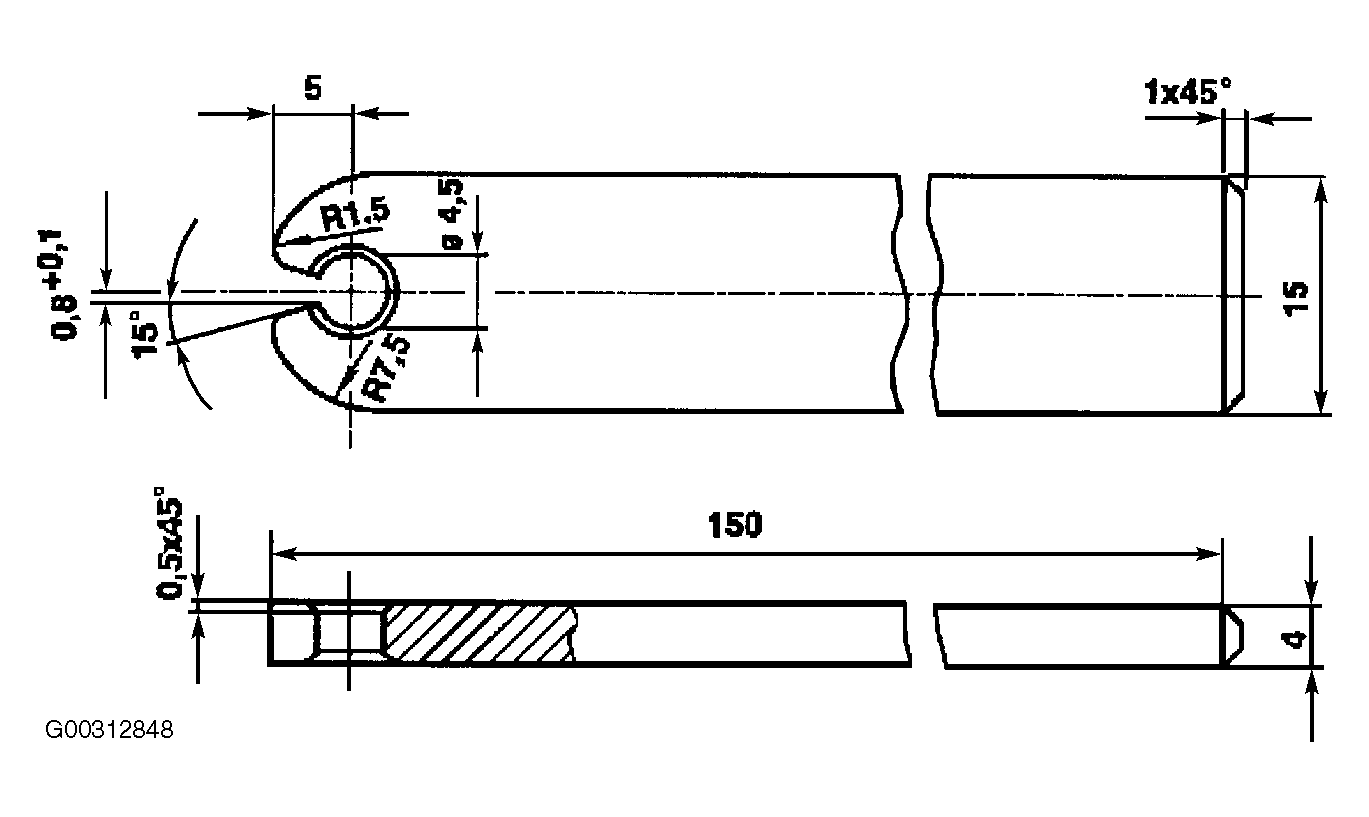

- Remove bracket (77a) and then remove control cable from release lever (77). Unclip control cable from pedal assembly using tool (010). See Fig 2 . Remove parking brake pedal.
- Installation is the reverse of removal. Check version of pedal assembly. See PEDAL ASSEMBLY VERSION . Adjust parking brake. See PARKING BRAKE under ADJUSTMENTS.
WARNING:
DO NOT loosen Torx bolts on back of parking brake pedal assembly otherwise parking brake pedal assembly will be damaged beyond repair.
