Remove/install rear bumper corners - AR88.20-P-0010G

MODEL 463.200 /202 /204 /206 /207 /208 /209 /220 /221 /222 /224 /225 /227 /228 /230 /231 /232 /233 /236 /237 /240 /241 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /300 /303 /306 /304 /307 /308 /309 /320 /321 /322 /323 /324 /325 /327 /328 /330 /331 /332 /333 /336 /340 /341 /346

Rear left bumper corner

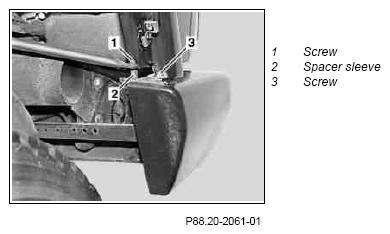

Fig 1: Identifying Rear Bumper Corners, Spacer Sleeve And Screw

Courtesy of MERCEDES-BENZ USA

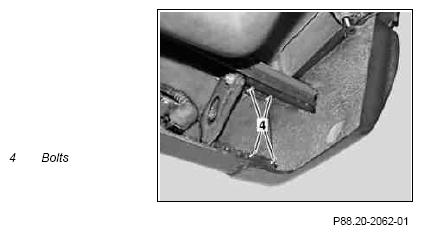

Fig 2: Identifying Rear Bumper Corners And Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left rear splash protection and right rear splash protection		AR61.30-P-0010A
2	Unscrew bolts (1) with spacer sleeve (2) and bolt (3) from left fender flare	Perform step in same manner on right side of vehicle.
3	Remove bolts (4) from left bumper	Perform step in same manner on right side of vehicle.
4	Disconnect electrical connectors from backup assist sensors	Only with code J44 Ultrasonic backup assist
5	Install in the reverse order
