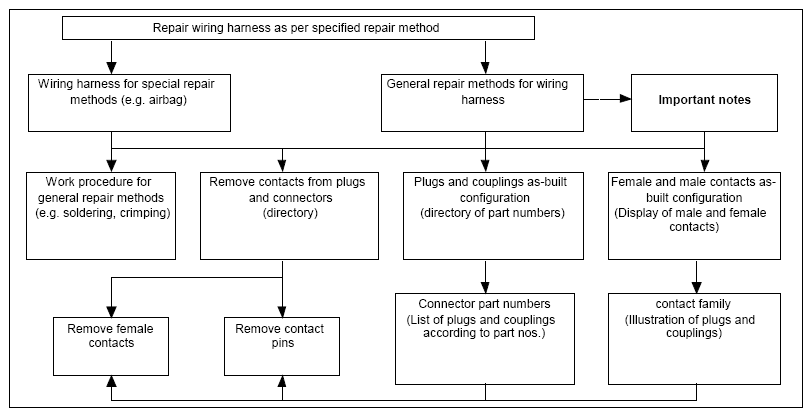

Repair wiring harness as per specified repair method - AR00.19-P-0001A
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 172, 197, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 240, 245, 251, 414, 461, 463
| Figure/item, etc. | Work instructions | ||
| Notes on replacement of safety-relevant and special components | AH00.19-P-1000-08A | ||
| Assessment of damage in wiring harnesses | AH00.19-P-1000-05A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | Model 124, 126, 129 up to 30.6.93, 140, 202 up to 30.6.93 | AH91.00-P-0006-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | Except model 124, 126, 129 up to 30.6.93, 140, 202 up to 30.6.93 | AH91.00-P-0006-01B | |
| Notes regarding plug connections | AH00.19-P-1000-06A | ||
| Advantages of repairing wiring harnesses | AH00.19-P-1000-03A | ||
| Repair methods for wiring harnesses | AH00.19-P-1000-04A | ||
| Assessment of high-voltage components | Model 164.195, 169.090, 221.095/ 195 | AH54.00-P-6500-01SXH | |
| Repair supplemental restraint system (SRS) squib wiring harness | Model 124, 129, 140, 163, 164, 168, 169, 170, 171, 172, 197, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463. Model 126 with CODE (291) Airbag for driver and front passenger (only for front passenger if driver airbag is standard equipment) or with CODE (442) Airbag in steering wheel |
AR54.18-P-0600A | |
| Repair wiring harness | |||
| Model 168.031 ## up to 180747 with engine 166.940 Engine wiring harness on body side Model 168.033 ## up to 180747 with engine 166.960 Engine wiring harness on body side |
AR54.18-P-0100GF | ||
| Repair wiring harness | |||
| Model 168.007 with engine 668.941 Engine wiring harness on body side Model 168.008 with engine 668.940 Engine wiring harness on body side |
AR54.18-P-0100GD | ||
| Repair wiring harness | |||
| Model 168.007 with engine 668.941 Engine wiring harness Model 168.008 with engine 668.940 Engine wiring harness |
AR54.18-P-0100GC | ||
| Install left front repair wiring harness | |||
| Model 168.007/ 008/ 031/ 032/ 033 Only vehicles with one-piece wiring harness |
AR54.18-P-0700GC | ||
| Install right front repair wiring harness | |||
| Model 168.007/ 008/ 031/ 032/ 033 Only vehicles with one-piece wiring harness |
AR54.18-P-0701GC | ||
| Install left rear repair wiring harness | |||
| Model 168.007/ 008/ 031/ 032/ 033 Only vehicles with one-piece wiring harness |
AR54.18-P-0702GC | ||
| Install right rear repair wiring harness | |||
| Model 168.007/ 008/ 031/ 032/ 033 Only vehicles with one-piece wiring harness |
AR54.18-P-0703GC | ||
| General repair methods for wiring harness | AR00.19-P-0100A | ||
| Checking wiring harness | AR54.18-P-0600-01A | ||
| Fig 2 | |||
| Fig 3 |
