Repair supplemental restraint system (SRS) squib wiring harness - AR54.18-P-0600A
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 124, 129, 140, 163, 164, 166, 168, 169, 170, 171, 172, 197, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94,
463
MODEL 126
with CODE (291) Airbag for driver and front passenger (for front passenger only if driver airbag standard)
with CODE (442) Airbag in steering wheel
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect power supply and unplug the SRS test connector (X11/13). | AS91.00-Z-0001-01B | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by burns to skin and eyes. Risk of poisoning caused by inhaling fumes when working with heat-shrinkable tubing. | Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves. | AS00.19-Z-0001-01A | |
| Notes on replacement of safety-relevant and special components | AH00.19-P-1000-08A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | Model 124, 126, 129 up to 30.6.93, 140, 202 up to 30.6.93 | AH91.00-P-0006-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | Except model 124, 126, 129 up to 30.6.93, 140, 202 up to 30.6.93 | AH91.00-P-0006-01B | |
| Notes on cable protection | AH00.19-P-1000-11A | ||
| 1 | Remove detachable body components in area to be repaired | ||

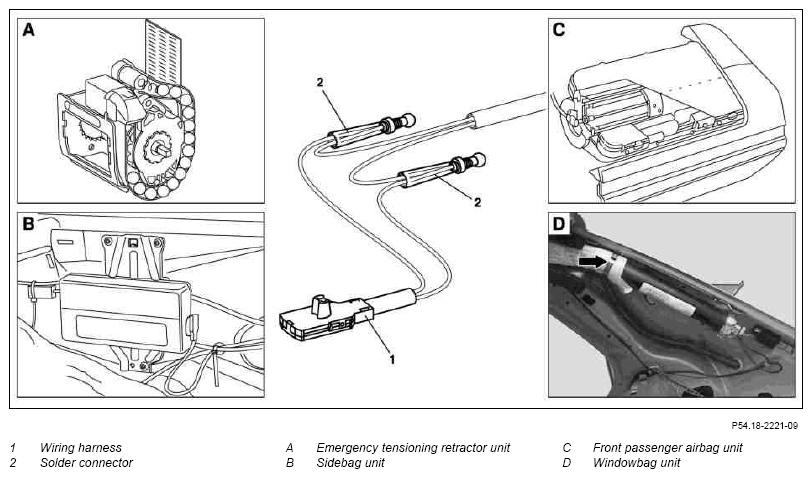

| 2 | Repair wiring harness (1) using solder connector (2) | AR00.19-P-0100-09A | |
| Fig 2 | |||
| Fig 9 | |||
| Fig 6 | |||
| Fig 7 | |||
| Fig 8 | |||
Hot air blower |
Fig 4 | ||
| 3 | Protect repair area after cable repairs | AR00.19-P-0100-08A | |
| 4 | Check wiring harness (1) | AR54.18-P-0600-01A | |
| Fig 5 | |||
| Fig 3 | |||
| 5 | Install in the reverse order |
