Remove/install trim at C-pillar - AR68.30-P-4490Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.3
| Remove/install | |||
| Note on function reliability of windowbag | AH91.60-P-0693-01A | ||

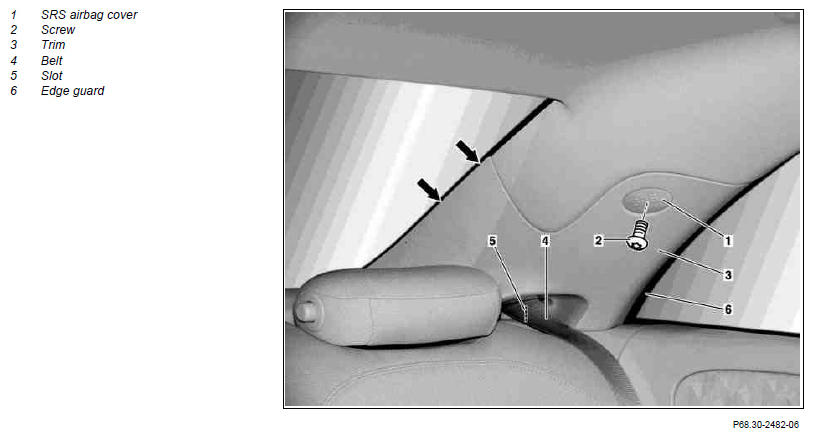

| 1 | Unclip SRS airbag covering (1) | ||
| 2 | Remove bolt (2) | ||
| 3 | Pry off paneling (3) | ||
| Figure | |||
| 4 | Remove paneling (3) | ||
| 5 | Guide belt strap (4) through slot (5) | Vehicles without code P98 Black Series |
|
| 6 | Install in the reverse order | ||
| 7 | Align edge guard (6) after installation in area of paneling (3) |
