Remove/install SAM with fuse and relay box, left front - AR54.21-P-1260P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209

Shown on model 203.0

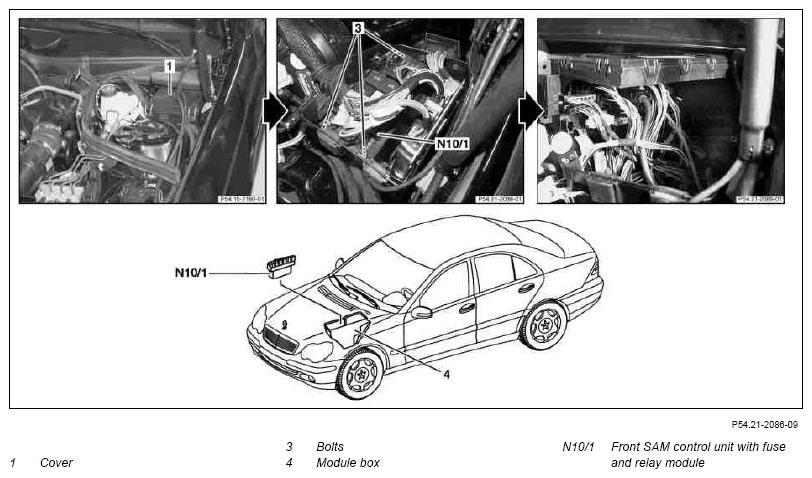

Fig 1: Identifying Front SAM With Fuse And Relay Box Components
G07718354Courtesy of MERCEDES-BENZ USA

Shown on model 203.0, engine 642

REMOVINGINSTALLING Remove/install
1.1 Connect STAR DIAGNOSIS and buffer basic data from driver-side SAM control unit with fuse and relay module (N10/1) in STAR DIAGNOSIS. When replacing the front SAM control unit with fuse and relay module (N10/1).
IMPORTANTInstallation:  transfer buffered basic data to the new front SAM control unit with fuse and relay module (N10/1).

REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
DANGER Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.  Always remove ignition key when working on windshield wiper mechanism. AS82.30-Z-0001-01A
2.1 Set wiper arms to vertical position Engine 111
Engine 112
Engine 113
Engine 271
Engine 611
Engine 612
Engine 646
3.1 Unscrew wiper linkage (5) from wiper hinge (arrow), move over the bracket (6) and position outside the working area IMPORTANT Only for engine 642
4 Disconnect battery ground cable
Model 209 AR54.10-P-0003Q
NOTES Notes on battery All models AH54.10-P-0001-01A
5.1 Unlock and remove cover (1) on module housing (4) IMPORTANTInstallation: Check gasket for damage
Engine 111
Engine 112
Engine 113
Engine 271
Engine 611
Engine 612
Engine 646

5.2 Unscrew bolts (7) and remove cover (1) of module box (4) IMPORTANTInstallation: Check gasket for damage
Engine 642

6.1 Remove injection system control unit Engine 111
Engine 112
Engine 113
Engine 611
Engine 612
Engine 646
AR07.08-P-7008P
6.2 Remove front SAM control unit with fuse and relay module (N10/1) from guide. Engine 271
7 Remove bolts (3)
8 Release and remove upper connectors IMPORTANTRemoval:  Disconnect cables from control unit and fuse and relay box AR54.18-P-1261-01P
IMPORTANTInstallation:  Connect cables on control unit and fuse and relay box AR54.18-P-1261-02P
9 Expose wiring harness.
10 Remove front SAM control unit with fuse and relay module (N10/1) upwards. IMPORTANT Only pull out far enough for the connectors to be accessible.
11 Release and remove lower connectors IMPORTANTRemoval:  Disconnect cables from control unit and fuse and relay box AR54.18-P-1261-01P
IMPORTANTInstallation:  Connect cables on control unit and fuse and relay box AR54.18-P-1261-02P
12 Remove front SAM control unit with fuse and relay module (N10/1). IMPORTANT When replacing, the fuse and relay assignment must be inspected.
13 Install in the reverse order
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
