Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 with CODE (220a) Parktronic System (PTS)

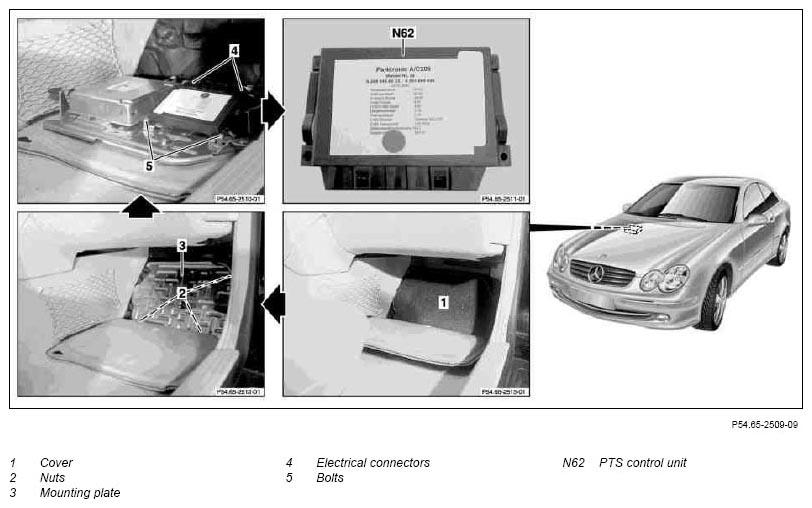

Shown on model 209.3
MODIFICATION NOTES
| 20.1.04 | Disconnect/connect/remove ground lead from battery |
| Removal/installation | |||
| 1 | Fold back floor covering in passenger footwell | ||
| 2 | Take out cover (1) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove mounting plate (3) from vehicle floor | ||
| 5 | Separate electrical connectors (4) | ||
| 6 | Unscrew bolts (5) | ||
| 7 | Remove PTS control unit (N62) from guides | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS, read and erase diagnostic trouble code memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||
| 10 | Perform function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
