Perform version coding subsequently - AZ54.65-P-0001-08Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
The described STAR DIAGNOSIS menu guidance corresponds to the German DAS version 09/2005 and may deviate from other versions.

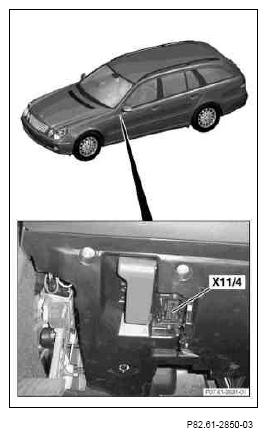

- Connect STAR DIAGNOSIS to data link connector (X11/4).
- Start DAS, enter vehicle model and select the "Control units" menu item.
- In the "Control unit groups" menu, select the subgroups
- "Information and communication"
- "IC instrument cluster"
- "Control unit adaptations"
- "Special equipment"
one after the other.
- In the "special equipment" menu, set the "TEL telephone" menu item from "not present" to "present" and transfer the coding into the control unit
If the "TEL telephone" menu item is not present, proceed with operation step 6.1.
- Finish and disconnect DAS.
Shown on model 211.2
- 6.1 Select the "customer specific settings" menu item in the "instrument cluster" menu.
- 7.1 In the "customer specific settings" menu item set the "iPod: Operation via the multifunction steering wheel" menu from "not possible" to "possible" and transfer coding into the control unit.
- 8.1 Finish and disconnect DAS.
