Upper control panel control unit, design - GF54.21-P-4105-03QB
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

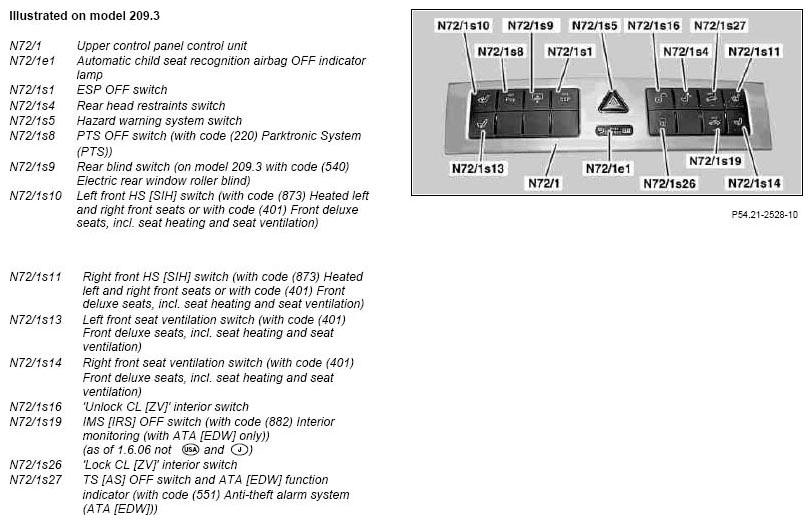

Illustrated on model 209.3
With
and
with code (551) Anti-theft alarm system (ATA [EDW]) the tow-away protection function is discontinued as of 1.6.06.
The TS [AS] OFF switch and ATA [EDW] function indicator (N72/1s27) is designed as a blind button. The ATA [EDW] function indicator remains fitted.
