Upper control panel control unit, design - GF54.21-P-4105-03QA

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Shown on model 209.3

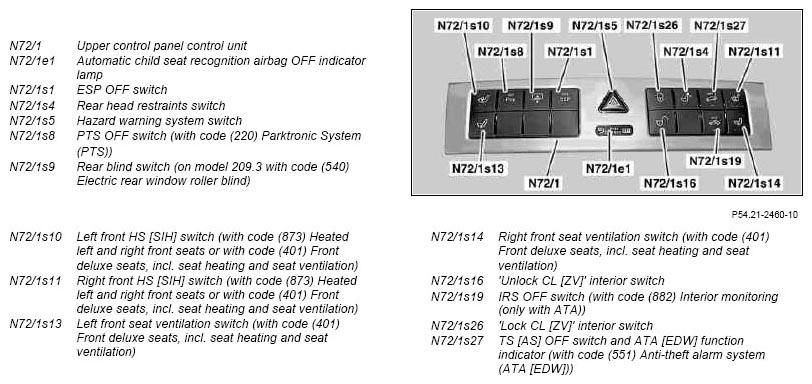

Fig 1: Design Of Upper Control Panel Control Unit
G07718199Courtesy of MERCEDES-BENZ USA
