Travel time, function - GF54.50-P-2004QA

MODEL 209.3 /4 with CODE (245) Trip computer

Travel time "Since start" (short-distance memory), function

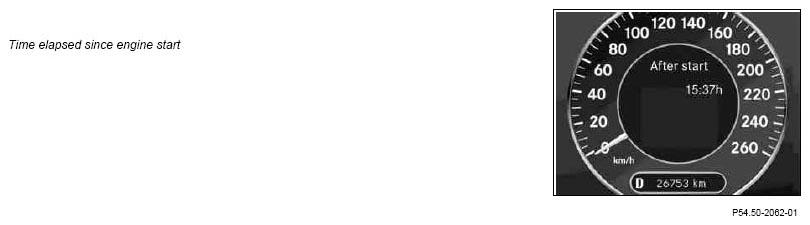

Fig 1: Display Travel Time (Short-Distance Memory)

Courtesy of MERCEDES-BENZ USA

Travel time "Since reset" (long-distance memory), function

Fig 2: Display Travel Time (Long-Distance Memory)

Courtesy of MERCEDES-BENZ USA

The "as of starting" and "as of reset" for the travel time can be activated via the system selection buttons (S110s3) and scrolling forwards and backwards buttons (S110s1) on the multifunction steering wheel.

As the time is only counted for "circuit 15 ON", the instrument cluster (A1) needs the information on the status of "circuit 15". This information is relayed by the EIS control module (N73) onto the interior compartment CAN and is read by the instrument cluster (A1).

If the display of travel time or travel distance exceeds the maximum display value (99:59 h, 40.959 miles or 65.535 km), the travel time and travel distance of the respective memory is automatically reset. This preserves the relationship between travel time and mileage.
