Fuse assignment of fuse box in interior compartment on driver's side - GF54.15-P-1256-04Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Fuse assignment

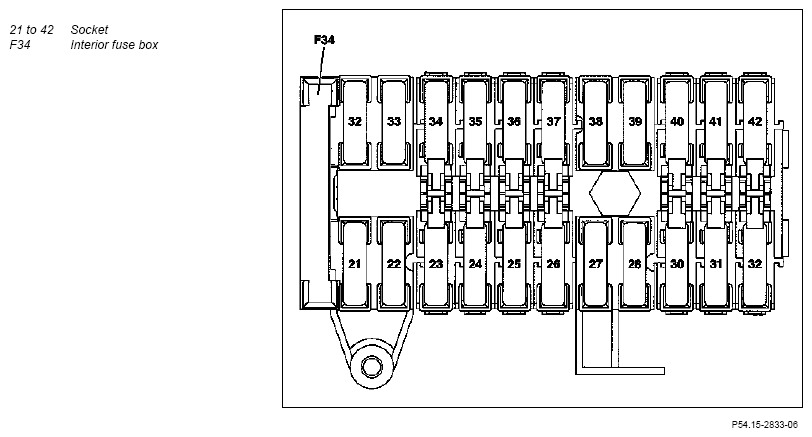

Fig 1: Fuse Assignment Of Fuse Box In Interior Compartment On Driver's Side

Courtesy of MERCEDES-BENZ USA

Bay	Fuse	circuit	Line identification (line fused)	Fused function	Rating in amperes (A)
21	F34f21	30	2.5 RDWH	Left door control unit (N69/1/)	30
22	F34f22	30	2.5 RDWH	Right door control unit (N69/2/)	30
23	F34f23	30	-	Spare	15
24	F34f24	30	0, 75 RDPK	Valid for code (401) Front comfort seats, incl. seat heating and seat ventilation: (N29/5) Left front seat ventilation blower regulator Right front seat ventilation blower regulator (N29/6)	7.5
25	F34f25	30	RDGN 2.5	Upper control panel control unit (N72/1/)	30
26	F34f26	30	4, 0 RDVT	Valid for code (810) Sound system: Sound amplifier (A2/13/)	25
27	F34f27	30	2.5 RDYE	Valid for code (275) Memory package (driver seat, steering column, mirrors): Driver front seat adjustment control unit with memory and easy entry (N32/1) (up to 31.5.04)	30
28	F34f28	-	-	Spare	-
29	F34f29	30	2.5 RDYE	Valid for code (275) Memory package (driver seat, steering column, mirrors): Driver front seat adjustment control unit with memory and easy entry (N32/1) (as of 1.6.04)	30
30	F34f30	30	RDGN 4.0	AC recirculation unit (A32)	40
31	F34f31	30	1.5 RDVT	Electric steering lock control unit (N26/5) EIS [EZS] control unit (N73)	20
32	F34f32	30	2.5 RDBK	Rear control unit (N22/6)	30
33	F34f33	30	2.5 RDBU	Rear control unit (N22/6)	30
34	F34f34	30	RDGN 2.5	Valid for code (242) Electrically adjustable front passenger seat with memory: Front passenger front seat adjustment control unit with memory and easy entry (N32/2) (as of 1.6.04)	30
35	F34f35	30	2.5 RDBK	Valid for code (228) stationary heater: STH heater unit (A6)	30
36	F34f36	30	-	Spare	7.5
37	F34f37	30	2.5 RD	Valid for code (881) Remote trunk closing (RTC [HDFS]): TLC [HDS] control unit (N121)	25
38	F34f38	30	RDGN 2.5	Valid for code (242) Electrically adjustable front passenger seat with memory: Front passenger front seat adjustment control unit with memory and easy entry (N32/2) (up to 31.5.04)	30
39	F34f39	30	-	Spare	-
40	F34f40	30		Valid for and (up to 31.5.04):	7.5
			0, 75 RDVT	Trunk lid emergency release switch (S88/10)
				Valid for code (388) "Portable CTEL" UHI system:
				Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1/)
				Valid for code (854) MB portable CTEL:
				Telephone interface (A34/4)
				Valid for code (853) MB standard telephone:
			1.5 RDVT	Telephone transmitter and receiver unit, D2B (A35/13)
				Valid for code (852) Portable CTEL preinstallation complete on dome or code (854) MB Portable CTEL:
				Portable CTEL separation point (X39/37)
				Valid for with code (349) E Call emergency call system:
				E-call control unit (A35/8)
				Valid for code (852) Complete portable CTEL preinstallation on console, code (854) MB portable CTEL or code (388) Telephone "Handy", UPCI system:
				E-net compensator (A28/3/)
				Valid for code (855) TELE AID:
			0, 5 RDVT	Telephone transmitter/receiver unit and TELE AID [Telematic Alarm Identification on Demand] D2B (A35/17)
41	F34f41	30	1, 0 RDBU	Valid without code (581) Comfort automatic air conditioning: AAC [KLA] control and operating unit (N22) Valid for code (581) comfort automatic air conditioning: Comfort AAC (N22/7C-AAC [K-KLA]) control and operating unit (/) Rear blower motor control unit (N22/3)	15
42	F34f42	30	0, 5 RDYE	Instrument cluster (A1)	7.5
