Front SAM control unit with fuse and relay module, location / task / design - GF54.21-P-4108Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 209.3 /4
Shown on model 209.3

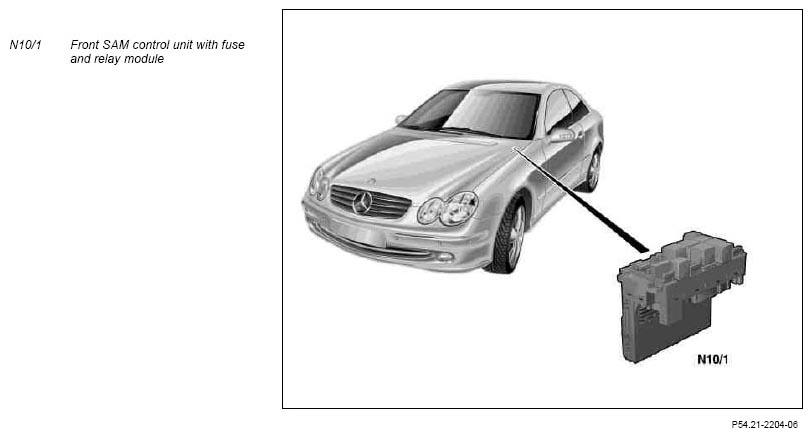

| Front SAM control unit with fuse and relay module, location | The front SAM control unit with fuse and relay module (N10/1) is located in the engine compartment near the left hood hinge (looking towards front of vehicle). | |
| Front SAM control unit with fuse and relay module, task | GF54.21-P-4108-01Q | |
| Front SAM control unit with fuse and relay module, design | The front SAM control unit with fuse and relay module (N10/1) is accommodated in a sturdy plastic housing. Various fuses and relays are plugged into the control unit. |
