Display transmission information, function - GF54.30-P-3023QQO

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3 /4 with TRANSMISSION 722.9 with CODE (428) Steering wheel shift buttons

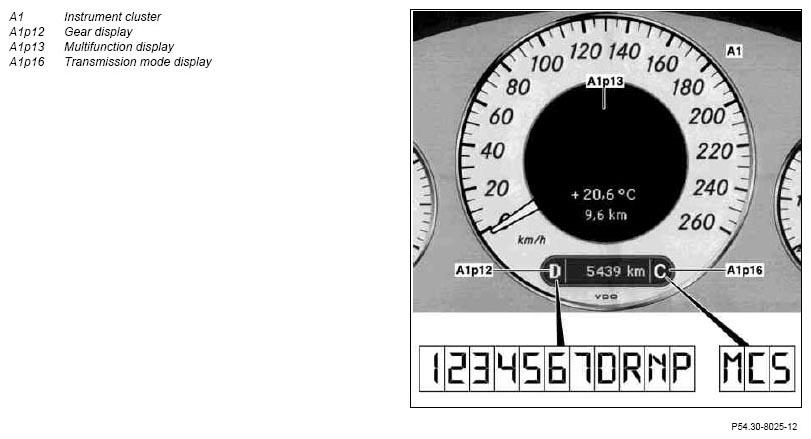

Fig 1: Display Transmission Information

Courtesy of MERCEDES-BENZ USA

Gear indicator in instrument cluster in comfort program "C" (except code P98 Black series) and Sport program "S"

The currently selected gear range 1, 2, 3, 4, 5, 6 or the selector lever position D, R, N or P is displayed to the driver in the gear indicator.

Gear indicator in instrument cluster in Manual mode "M"

The engaged gear 1, 2, 3, 4, 5, 6 or 7 is displayed to the driver in the gear indicator.

Transmission mode display in instrument cluster

The program selection, sport program "S", comfort program "C" (except code < > Black series) or manual program "M" performed at the transmission mode switch (S16/5) P98 Black Series) is displayed to the driver in the transmission mode display.

Instrument cluster (IC), location / task

GF54.30-P-3039Q
