Display transmission information, function - GF54.30-P-3023QO
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
Model 209.3 /4 (except 209.30 /31 /34 /36 /376 /476 /44 /46) with TRANSMISSION 722.9 except CODE (428) Steering wheel shift buttons

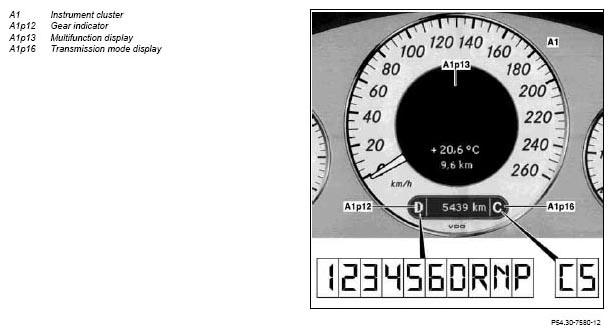

Gear indicator (A1p12) in instrument cluster (A1):
The shift range 1, 2, 3, 4, 5, 6 (A1p12) or selector lever position D, R, N or P currently selected by the driver is displayed in the gear indicator.
Transmission mode display (A1p16) in instrument cluster (A1)
The program selection (S) (sport program) or "C" (comfort program) performed at the transmission mode switch (S16/5) is displayed to the driver in the transmission mode display (A1p16).
| Instrument cluster (IC), location/task | GF54.30-P-3039Q |
