Remove/install bottom part of oil pan - AR01.45-P-7555QB

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.960 in MODEL 209.356/456

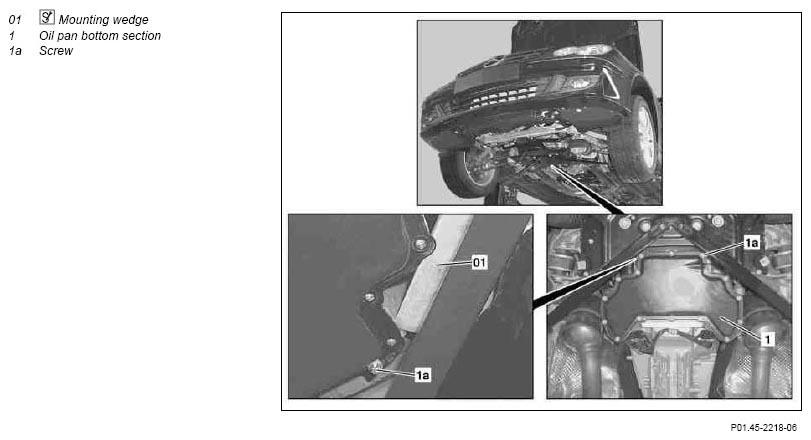

Fig 1: Identifying Oil Pan Bottom Section, Screws & Wedge

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift		AR00.60-P-1000P
2	Remove bottom engine compartment paneling	Installation: Only install lower engine compartment paneling after engine test run and leak test.	AR61.20-P-1105P
3	Drain engine oil and collect it for recycling
	Engine oil and filter change		AP18.00-P-0101PIT
		Installation: Replace sealing ring on oil drain screw.
4	Remove bolts (1a) on oil pan bottom section (1)		*BA01.45-P-1003-01M
5	Loosen oil pan bottom section (1) from oil pan and remove.	Pry off oil pan bottom section (1) from the oil pan by inserting a bolt (1a) and unfasten from the oil pan using assembly wedge (01). Only pry oil pan bottom section (1) together with bolt (1a) from the oil pan until mounting wedge (01) can be pushed between sealing surfaces, otherwise the oil pan bottom section (1) and sealing surface on the oil pan can be damaged.
		Mounting wedge If the oil pan bottom section (1) cannot be loosened from the oil pan, heat the oil pan bottom section (1) around sealing surfaces using a hot air gun. Installation: Observe application of sealant to oil pan bottom section (1).	Fig 2
	Notes on application of sealant to oil pan bottom section	Engine 272	AH01.45-P-0001-01VA
		Squeeze gun	Figure
		Loctite sealant 5970	*BR00.45-Z-1013-01A
	Clean
6	Clean sealing surfaces on oil pan bottom section (1) and oil pan	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
7	Install in the reverse order
	Checking
8	Check engine oil level and correct if required
	Engine oil and filter change	Model 203, 209 with engine 272	AP18.00-P-0101PIT
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Check for leaks with engine running

OIL PAN

Number	Designation		Engine 272
BA01.45-P-1003-01M	Bolt, oil pan bottom section to oil pan	Nm	9

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite sealant 5970	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Menchen Germany Tel. +49 899268-0 Fax + 49 899101978 www.Loctite.de
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
