Notes on sealant path for oil pan - AH01.45-P-0001-01VA

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Application of sealant to oil pan bottom section for engine with rear sump

The line (1) identifies the sealant run.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant listed in the Repair Products.

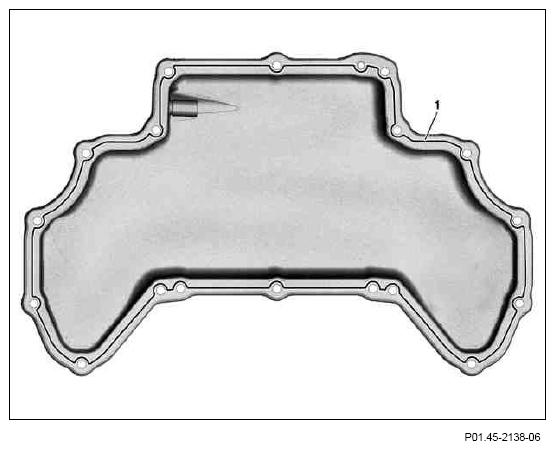

Fig 1: Identifying Sealant On Oil Pan Bottom Section For Engine With Rear Sump

Courtesy of MERCEDES-BENZ USA

Application of sealant to oil pan bottom section for engine with middle sump

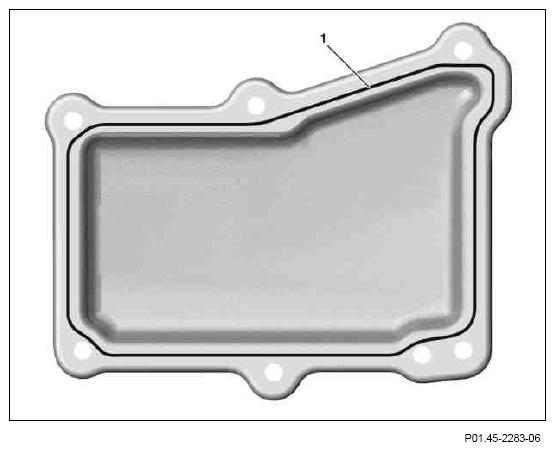

Fig 2: Identifying Sealant On Oil Pan Bottom Section For Engine With Middle Sump

Courtesy of MERCEDES-BENZ USA

Application of sealant to oil pan bottom section for engine with front sump

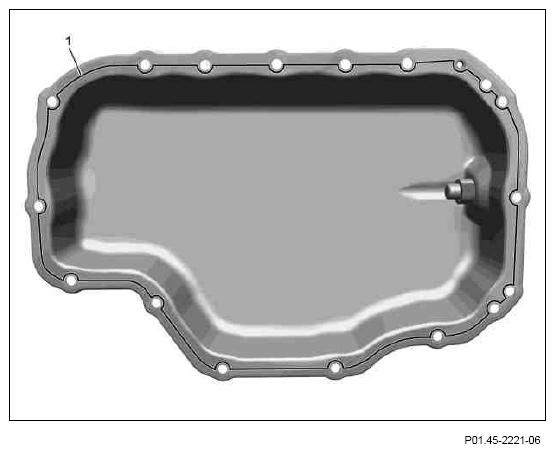

Fig 3: Identifying Sealant On Oil Pan Bottom Section For Engine With Front Sump

Courtesy of MERCEDES-BENZ USA
