Lift/jack up vehicle - AR00.60-P-1000P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209
Illustrated on model 171
| Lift/lower vehicle | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train. | Ensure that jack stands have secure and adequate footing. An authorized person must occupy the driver seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0008-01A | |

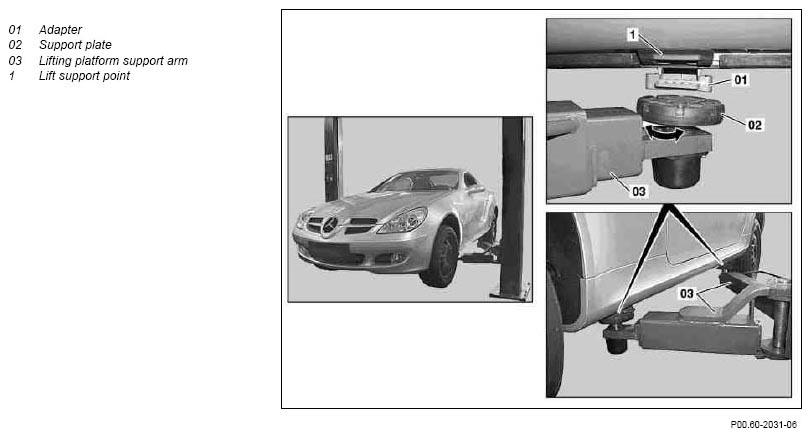

| 1 | Clip adapter (01) into lift support points (1) at side skirts | For removing the underfloor paneling. | |
| Fig 2 | |||
| 2 | Adjust support plates (02) of lifting platform support arms (03) to height of vehicle | ||
| 3 | Raise vehicle with vehicle lift | e.g.: Two-post lift gotis://H_00.1_01.1 |
|
| 4 | Secure the vehicle against tilting and toppling. | AR00.60-P-0100T | |
| 5 | Lower vehicle in reverse order | ||
| Jack up/lower vehicle | |||
| 6 | Lift vehicle with inspection pit lift or floor jack | AR00.60-P-1000-01P | |
| e.g.: Pit lift gotis://H_00.9_02.0 e.g.: Trolley jack gotis://H_00.12_01.0 |
|||
| 7 | Secure the vehicle against tilting and toppling. | e.g.: Support stand gotis://H_00.12_13.0 |
|
| 8 | Lower vehicle in reverse order |
