Separate wheel well on fender side - AR62.20-P-1200-12P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

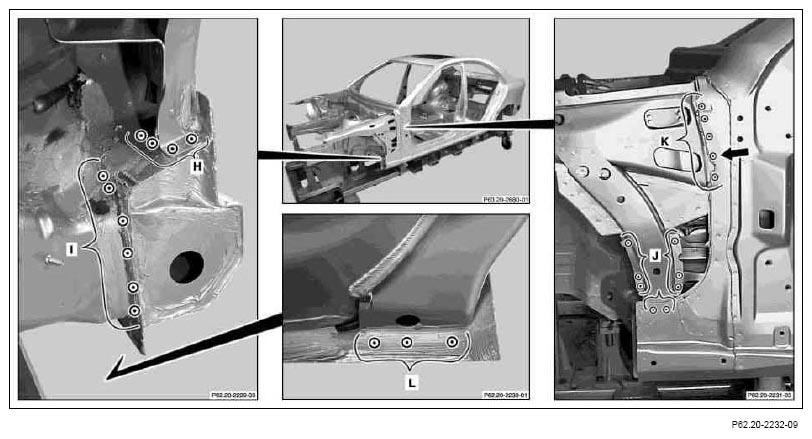

Fig 1: Identifying Fender Side Wheel Well Spot Welds

Courtesy of MERCEDES-BENZ USA

Work procedure shown on model 203.0.

Expose spot welds (areas H, I, J, K and L).
Cut out spot welds with ball cutter (areas H, I and L).
Cut out spot welds with spot weld cutter (areas J and K).
Spot weld (arrow) is not visible, must be felt.
