Replace complete front end assembly together with reinforcement - AR62.30-P-1570P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203.0/2

MODEL 203.7## #A up to 970021

MODEL 203.7## #E as of 028195 up to 035817

MODEL 209.3 except CODE (P98) Black Series

MODEL 209.4

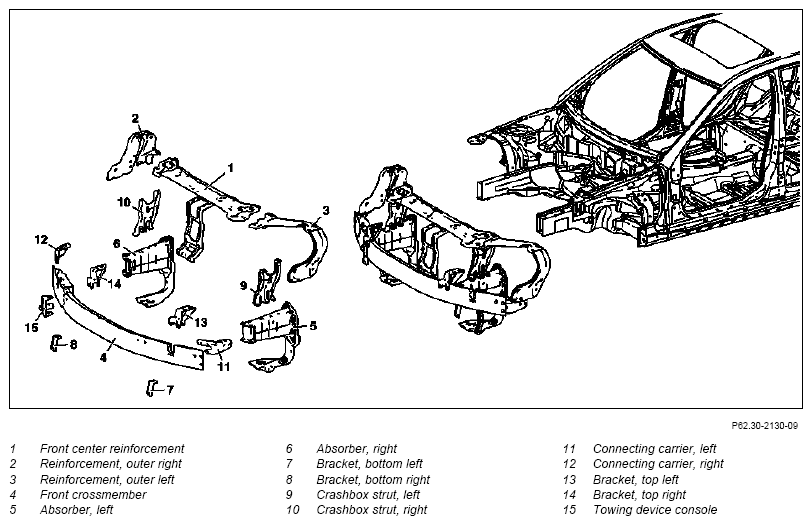

Fig 1: Identifying Front End Assembly Components
G07718565Courtesy of MERCEDES-BENZ USA

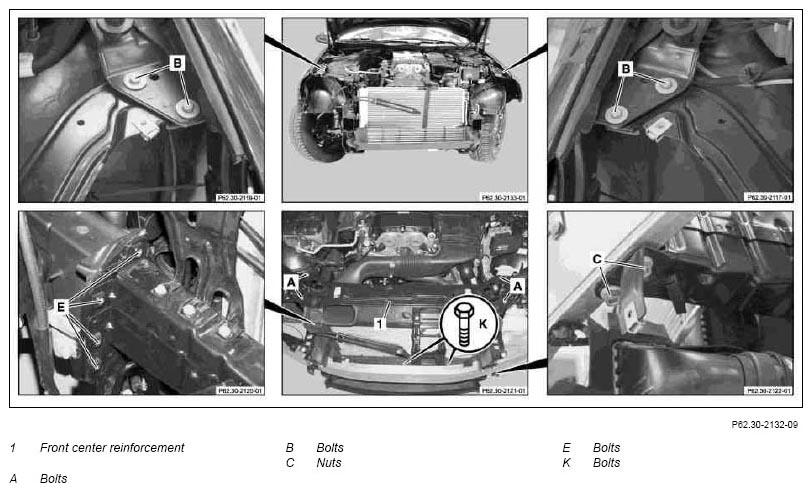

Fig 2: Identifying Front Center Reinforcement, Nuts & Bolts
G07718566Courtesy of MERCEDES-BENZ USA

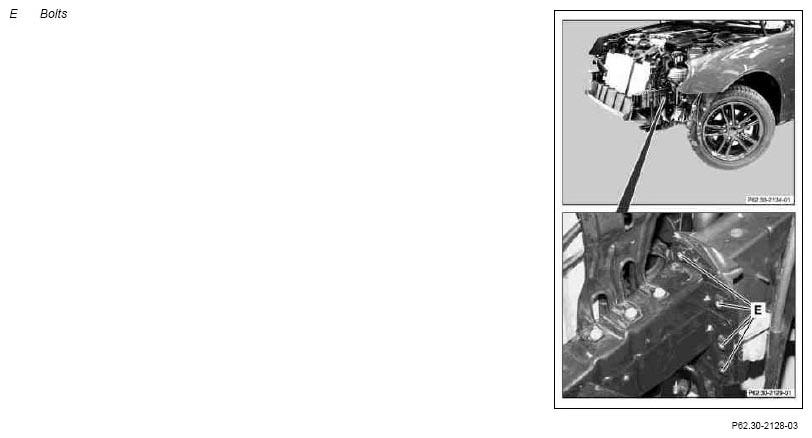

Fig 3: Identifying Bolts
G07718567Courtesy of MERCEDES-BENZ USA

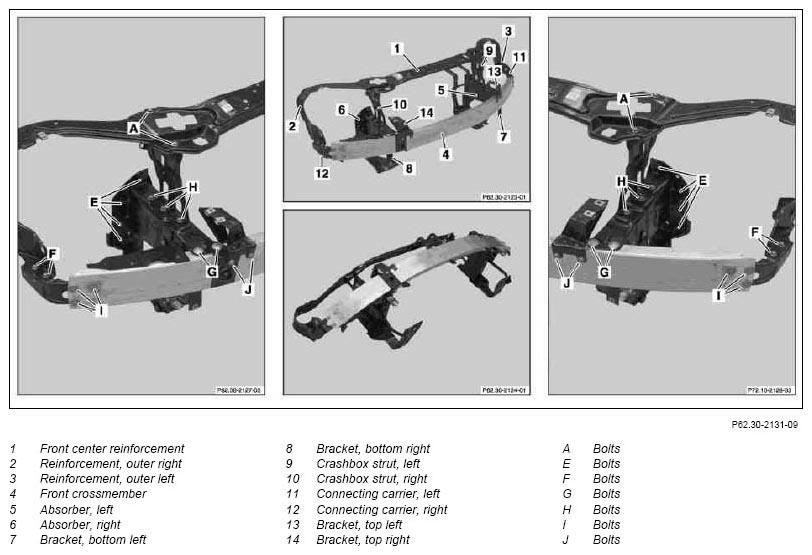

Fig 4: Identifying Front End Assembly Reinforcement Components
G07718568Courtesy of MERCEDES-BENZ USA
REMOVING Removing
1 Remove front bumper Model 203.0/2 except 203.076/276,
Model 203.7
AR88.20-P-2000P
Model 209, 203.076/276
2 Remove lamp units Model 203 AR82.10-P-4730P
Model 209 AR82.10-P-4730Q
3 Remove detachable parts in area to be repaired
4 Unscrew bolts (A, K) and remove center front reinforcement (1)
5 Remove air ducting for radiator
6 Fasten radiator with fastening belt SPECIAL TOOL Fig 6
SPECIAL TOOL Fig 7
7 Unscrew bolts (B) on left and right
8 Unscrew bolts (E) on left and right
9 Remove front end
INSTALLING Install
10 Install right absorber (6) and left absorber (5) on longitudinal member and tighten with bolts (E) IMPORTANT Position bolts (E) lightly
11 Screw front crossmember (4) to right bottom bracket (8) and left bottom bracket (7) and towing device console (15) with bolts (G) and nuts (C) IMPORTANT Position bolts (G) slightly
12 Center right absorber (6) and left absorber (5) on longitudinal member and tighten bolts (E)
13 Screw right connecting carrier (12) and left connecting carrier (11) to front crossmember (4) with bolts (I) IMPORTANT Tighten bolts (I).
14 Screw right outer reinforcement (2) and left outer reinforcement (3) to upper longitudinal members and right connecting carrier (12) and left connecting carrier (11) with bolts (B, F) IMPORTANT Tighten bolts (B, F) lightly.
15 Screw right crashbox strut (10) and left crashbox strut (9) to right absorber (6) and left absorber (5) with bolts (H) IMPORTANT Tighten bolts (H).
16 Screw on right upper bracket (14) and left upper bracket (13) with bolts (J) IMPORTANT Tighten bolts (J).
17 Screw on center front reinforcement (1) with bolts (A, K) IMPORTANT Tighten bolts (A, K) slightly.
18 Adjust front module IMPORTANT Fit headlamp unit and bumper for adjustment work. AR62.30-P-1570-01P
Model 203
Gap dimension between engine hood and fender,
engine hood and headlamp and
Engine hood to bumper
*BE60.00-P-1001-01E
Model 209
Gap dimension between engine hood and fender,
engine hood and headlamp and
Engine hood to bumper
*BE60.00-P-1001-01G
TORQUE SPECIFICATION *BA62.30-P-1001-02A
TORQUE SPECIFICATION *BA62.30-P-1004-02A
TORQUE SPECIFICATION *BA62.30-P-1005-02A
TORQUE SPECIFICATION *BA62.30-P-1011-02A
19 Install front bumper Model 203.0/2 except 203.076/276,
Model 203.7
AR88.20-P-2000P
Model 209, 203.076/276
20 Install lamp units Model 203 AR82.10-P-4730P
Model 209 AR82.10-P-4730Q
21 Adjust gap dimensions on engine hood Model 203.0 except 203.076 AR60.00-P-0700-01P
Model 203.2 except 203.276 AR60.00-P-0700-01PA
Model 203.7 AR60.00-P-0700-01PB
Gap dimension between engine hood and fender,
engine hood and headlamp and
Engine hood to bumper
*BE60.00-P-1001-01E
SPECIAL TOOL Fig 5
Model 209.3 AR60.00-P-0700-01Q
Model 209.4 AR60.00-P-0700-01QA
Gap dimension between engine hood and fender,
engine hood and headlamp and
Engine hood to bumper
*BE60.00-P-1001-01G
SPECIAL TOOL Fig 5
22 Install detachable body components in area to be repaired
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number Designation Model 203.004/006/007/008/016/018/020/035/040/042/043/045/046/052/054/056/061/064/065/081/084/087/092 Model 203.204/206/207/208/216/218/220/235/240/242/243/245/246/252/254/256/261/264/265/281/284/287/292
BE60.00-P-1001-01E Gap dimension Engine hood to fender Dim. "A" mm 3.5 (±1) 3.5 (±1)
Engine hood to headlamp Dim. "R" mm 4 (-0.5/+1.5) 4 (-0.5/+1.5)
Engine hood to bumper Dim. "D" mm - -
See picture   AR60.00-P-0700-01P AR60.00-P-0700-01PA
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number Designation Model 203.706/707/708/718/730/735/740/741/742/743/745/746/747/752/756/764
BE60.00-P-1001-01E Gap dimension Engine hood to fender Dim. "A" mm 3.6 (±1)
Engine hood to headlamp Dim. "R" mm 4 (±0.5)
Engine hood to bumper Dim. "D" mm 5
See picture   AR60.00-P-0700-01PB
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 209.3 Model 209.4
BE60.00-P-1001-01G Gap dimension Engine hood to fender Dim. "A" mm 3.5 (±0.5) 3 (±1)
Engine hood to headlamp Dim. "B" mm 3.5 (±0.5) 4 (±0.5)
Engine hood to bumper Dim. "C" mm 4 (±0.5) 5 (±0.5)
See picture AR60.00-P-0700-01Q AR60.00-P-0700-01QA
FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number Designation Model 203 Model 209
BA62.30-P-1001-02A Bolt connecting front end to longitudinal member Nm 57 55
BA62.30-P-1004-02A Bolt for crash box Nm 57 55
BA62.30-P-1005-02A Bolt connecting reinforcement to fender bracket Nm 8 10
BA62.30-P-1011-02A Bolt, crossmember to crash box Nm - 32
Fig 5: Identifying Feeler Gauge (129 589 03 21 00)
G07718569Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Adapter For Fastening Belt (209 589 00 63 00)
G07718570Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Fastening Strap (211 589 05 63 00)
G07718571Courtesy of MERCEDES-BENZ USA
