Prepare upper front longitudinal member - AR62.20-P-1286-02P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark separation point on new upper front longitudinal member (area A).
  2. Cut separation point with body saw (area A).

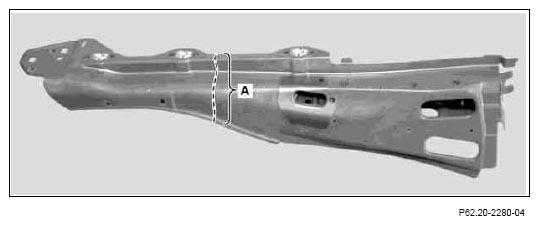

    Fig 1: Identifying Separation Point On New Upper Front Longitudinal Member
    G07718530Courtesy of MERCEDES-BENZ USA
  3. Grind mating surfaces down to bare metal in the cross-hatched areas.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides.

  4. Coat insides of spot weld flanges with zinc dust paint.
    Fig 2: Identifying Mating Surfaces Of Spot Weld Flanges
    G07718531Courtesy of MERCEDES-BENZ USA
