Installing check and welding device - AR62.20-P-1286-04PA

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Inspection & Welding Device (203 589 05 23 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Inspection & Welding Device (203 589 04 23 00)

Courtesy of MERCEDES-BENZ USA

Assemble inspection and welding device (01)

Fasten extension (W203, S203, CL 203 as of YoM 08 (beige-red)) (01a) or extension (CL203 up to YoM 08, A/C209 (yellow-green)) (01b) according to corresponding vehicle model to inspection and welding device (01) with bolt M8 (01g).$

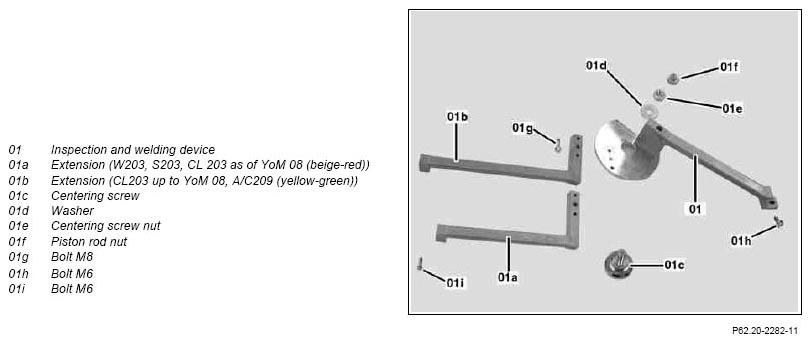

Fig 3: Identifying Welding Device Components
Courtesy of MERCEDES-BENZ USA

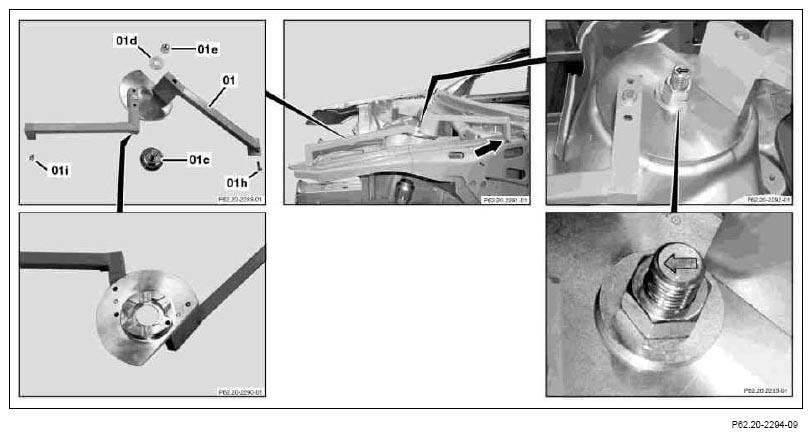

Fig 4: Positioning Check And Welding Device
Courtesy of MERCEDES-BENZ USA

Install inspection and welding device (01)
Position check and welding device (01) on spring strut dome and extension on engine hood hinge mount (arrow).
Insert centering screw (01c) from below with arrow pointing in direction of travel, fix in place with washer (01d) and centering screw (01e).
Screw screw M6 (01h) into threaded hole in engine hood hinge.
Tighten centering screw nut (01e) and bolt M6 (01h) while holding extension under tension toward outside of vehicle.
When performing testing work, fasten extension from below with bolt M6 (01i.
